for Side Mounting

GN 664.1 Filler Strainers

ELESA Original design PLRF+C Info

Show filter

d₁ Thread	d₂ Bayonet BA	d₃	d₄	h₁	h₂	l₁	l₂	s

G 1 1/4	BA 39	49	7	18	92	148	117	7

Filter combination produces no result.

1) Breather caps must be ordered separately.

Specification

Threaded flange
Plastic

Glass fiber reinforced
Black, matte finish

Filler strainer
Plastic (Polypropylen PP)

Glass fiber reinforced
Temperature resistant up to 90 °C
Black, matte finish

Flange for fitting bayonet
Steel, zinc plated, blue passivated

Seal cork
Impregnated with rubber

Plastic Characteristics

RoHS

On request

Mounting flange without the filler strainer

Information

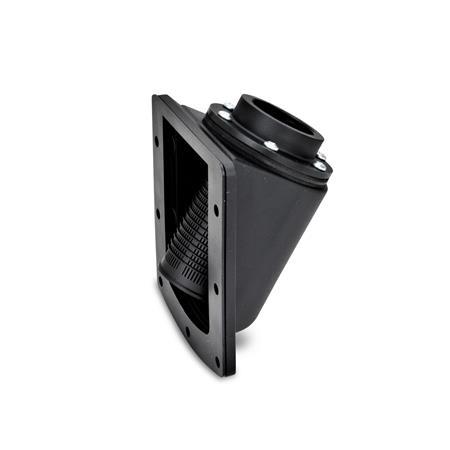

Filler strainers GN 664.1 are available with mounting flange for threaded or bayonet (BA) connection. Filler strainers prevent the ingress of coarse impurities during the refilling process.

The side flange is fitted with 7 screws M6 on the wall of the tank. When installing the flange it is important that these are not overtightened (torque max. 8 Nm) to prevent deformation of the flange and possible weakening of the sealing.

The mounting screws M6 for the side flange are not included.
