Stainless Steel

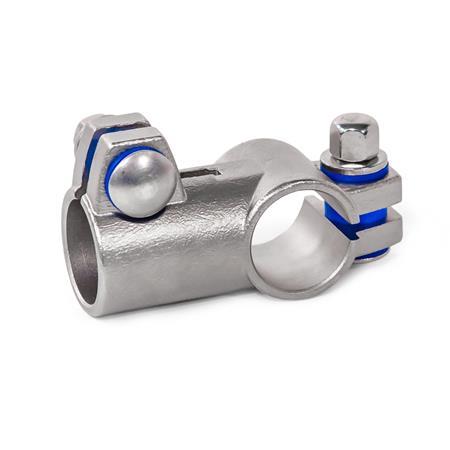

GN 192.5 T-Angle Connector Clamps
Type
| A | Without seals |
| B | With seals |
Identification no.
| 4 | With 2 stainless steel cap nuts DIN 917 |
| d1 Bore | d2 Bore | b | k1 Clamping length | k2 Clamping length | l1 | l2 | m | z1 Screw location | z2 Screw location | Accessory Recom. hand lever GN 911.3 for z1 l3 | for z2 l3 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| B 30 | B 30 | 22 | 37 | 42 | 96 | 35 | 60 | M 8 | M 8 | 63 | 78 | 63 | 78 |
| B 50 | B 50 | 30 | 65 | 75 | 151,5 | 48,5 | 103 | M 10 | M 10 | 78 | 92 | 78 | 92 |
Filter combination produces no result.
Specification
Stainless steel AISI CF-8
Matte shot-blasted
Carriage bolt DIN 603
Stainless steel A2
Cap nuts DIN 917 / washers
Stainless steel A2
Seals
RoHS
Matte shot-blasted
Carriage bolt DIN 603
Stainless steel A2
Cap nuts DIN 917 / washers
Stainless steel A2
Seals
- Sealing disks
Plastic (Polyacetal POM) - Spacer ring
Silicon, 40 ... 60 Shore A
RoHS
Accessory
Adjustable Hand Levers GN 911.3Information
The clamping bores of T-angle connector clamps 192.5 are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.
At the screw locations z1 / z2, carriage bolts and cap nuts reduce the bore cross-section for clamping. Type B is equipped with seals at the screw locations.
For clamping without tools, the cap nuts can be replaced by adjustable hand levers GN 911.3 listed in the table as accessories.
| How to order |
| ||||||||
GN 192.5-B30-B30-A-4 |
