for Latches
GN 120.1 Opening Handles
| d | s | b | h1 | h2 | Length l | for locks / snap locks / rotary clamping latches |
|---|---|---|---|---|---|---|
| 31 | 20,5 | 2 | 6 | 18 | 35 | GN 115 / GN 115.8 |
| 35 | 20,5 | 2 | 8 | 18 | 36 | GN 119 / GN 315.1 / GN 516 / GN 516.1 / GN 516.5 |
Filter combination produces no result.
Please note: The latch distance A1 ... A9 and/or the locking distance A is reduced by the dimension „b“.
Specification
Information

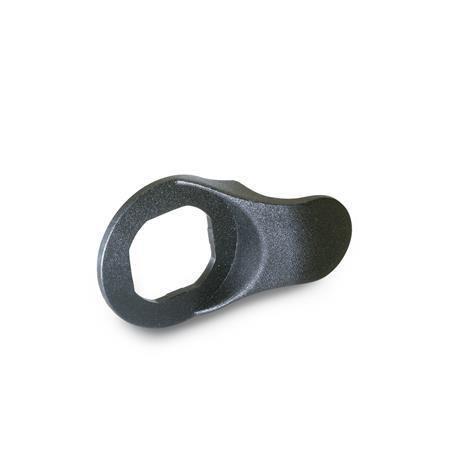

Opening handles GN 120.1 are simple operating elements which are used in combination with key or push-button actuated locking devices. They have a low installation height and can be mounted as required in a 90° grid pattern together with the lock housing.
Opening handles GN 120.1 are suitable for the following latches and locking devices:
- Latches GN 115 (not Lockable)
- Latches GN 115 (Lockable)
- Stainless Steel Latches GN 115
- Hook-Type Latches GN 115.8
- Latches GN 119
- Stainless Steel Latches GN 119
- Snap Locks GN 315.1
- Rotary Clamping Latches GN 516
- Rotary Clamping Latches GN 516.1
- Stainless Steel Rotary Clamping Latches GN 516.5
| How to order |
| ||||
GN 120.1-31-SW |
