Stainless Steel, for Swivel Ball Joints GN 784
GN 784.1 Flanges
| d0 Swivel ball joint Ø GN 784 | d1 | d2 | d3 | d4 | d5 | h1 | h2 | m | s |
|---|---|---|---|---|---|---|---|---|---|
| 23 | 42 | 32,5 | 4,5 | M 5 | 2 | 6 | 8,5 | 7 | 2,5 |
| 31 | 49 | 40 | 4,5 | M 6 | 3 | 6 | 10,5 | 9 | 3 |
| 39 | 60 | 50 | 5,5 | M 8 | 4 | 10 | 14,6 | 12 | 4 |
| 49 | 70 | 60 | 5,5 | M 8 | 4 | 10 | 14,6 | 16 | 4 |
Filter combination produces no result.
Specification
Stainless steel AISI 304
Matte, groundMT
Countersunk screw DIN 7991
Stainless steel AISI 304
Half length tapered groove pin DIN 8745
Stainless steel AISI 304
RoHS
Matte, groundMT
Countersunk screw DIN 7991
Stainless steel AISI 304
Half length tapered groove pin DIN 8745
Stainless steel AISI 304
RoHS
Information

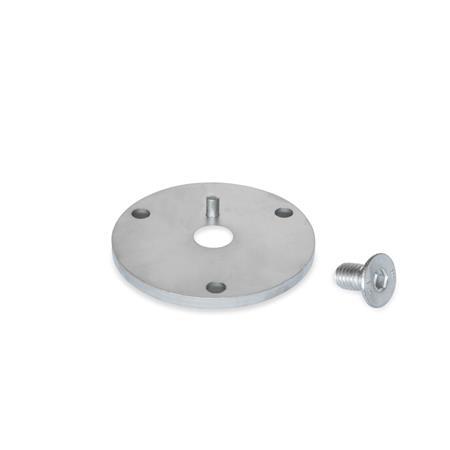

Flanges GN 784.1 are mounted from below onto the GN 784 swivel ball joints GN 784. A half length tapered groove pin prevents any rotation.
The flange enables the swivel ball joints to be mounted on the upper surface. The d2 section with the three d3 drill holes is configured so that standard screws with washers can be used.
The half length tapered groove pin is mounted on the flange. The countersunk screw is included separately.
| How to order |
| ||||
GN 784.1-70-MT |
