Press-On Type, with Ball

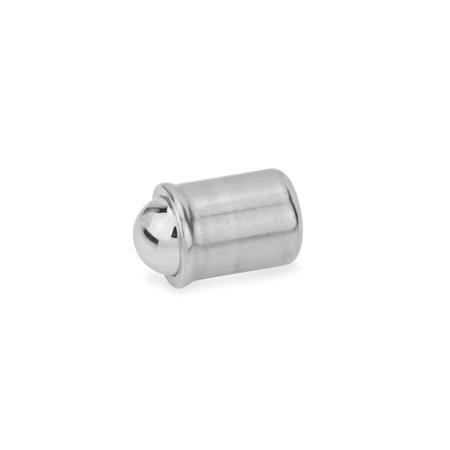

GN 614 Stainless Steel Spring Plungers

Stainless Steel Spring Plungers GN 614 thumbnail

Zoom

Stainless Steel Spring Plungers GN 614 sketch

Type

NI	Stainless steel, standard spring load
NIL	Stainless steel, light spring load
NIS	Stainless steel, high spring load

Show filter

d₁ +0,1 NI	NIL / NIS	d₂	d₃	l₁ ≈	l₂ ≈	w Compression	Spring load in N ≈ standard (Type NI) initial	End	Spring load in N ≈ light (Type NI) initial	End	Spring load in N ≈ high (Type NI) initial	End

3	-	2,4	3,5	4	0,6	0,7	1,8	3,5	-	-	-	-
4	4	3	4,6	5	0,9	1	2,5	6	0,4	1	5	10,4
5	5	4	5,6	6	0,9	1,4	3	6,5	0,5	4,7	6	12
6	6	5	6,5	7	1	1,8	5,5	11,5	2,3	6,5	7,3	19
8	8	6,5	8,5	9	1,1	2,4	7	12,5	4	9	11	25
10	10	8,5	11	13	1,5	3,3	8,5	18,5	3,9	10	17	37
12	12	10	13	16	2,3	4	12	26,5	6,2	14,6	30	54

Filter combination produces no result.

Specification

Housing
Stainless steel AISI 305
Sheet-metal

Ball
Stainless steel AISI 420C
Hardened

Pressure spring
Stainless steel AISI 631

Identification of type NIL:
Housing with 1 longitudinal marking

Identification of type NIS:
Housing with 2 longitudinal markings

Application video spring plungers

ISO Fundamental Tolerances

Stainless Steel Characteristics

RoHS

Information

Stainless steel spring plungers GN 614 are used as detents as well as for push-on and push-off applications and ejectors.

A tolerance of H7 for the location hole of d₁ is recommended.

How to order

1	d₁
2	Type

GN 614-5-NI
