Detectable, FDA Compliant Plastic

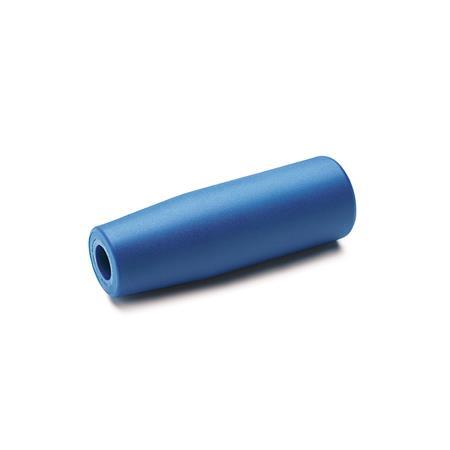

GN 519.2 Cylindrical Handles

Cylindrical Handles GN 519.2 thumbnail Zoom ELESA

Detectable, FDA Compliant Plastic

GN 519.2 Cylindrical Handles

Cylindrical Handles GN 519.2
© Copyright
Otto Ganter GmbH & Co. KG
Photo can differ
ELESA original design I.780-VD/MDInfo
Cylindrical Handles GN 519.2 sketch

d1 +0,5d2d3l1l2
min.
l3
26M 102180557
Filter combination produces no result.

Specification

Plastic
Technopolymer (polyamide PA)
  • Glass fiber reinforced
  • Temperature resistant up to 110 °C
  • FDA compliant plastic granulate
  • Blue, RAL 5005, matte finish
  • Visually detectableVDBVDB

Plastic
Technopolymer (polyamide PA)
  • Glass fiber reinforced
  • Temperature resistant up to 110 °C
  • FDA compliant plastic granulate
  • Metal detectable additive
  • Blue, RAL 5001, matte finish
  • Metal detectableMDBMDB

RoHS

Information

Cylindrical handles GN 519.2 are made of blue plastic granulate that is FDA compliant as per FDA CFR.21 and EU 10/2011 as well as visually detectable or metal detectable.

The blue color is especially easy to see with the human eye and is also easy to detect with optical monitoring systems. This allows monitoring of the production process, such as in food production, so that the process can be interrupted if foreign bodies are detected.

The plastic of type MDB also contains metal detectable additives. Metal detectors will be triggered by this material as of a particle volume of about 0.125 cm3, meaning that even hidden plastic chips can be detected.

How to order
1d1
2d2
3Material / Finish
GN 519.2-26-M10-VDB

RoHS compliant: Info -
Weight: Info -
