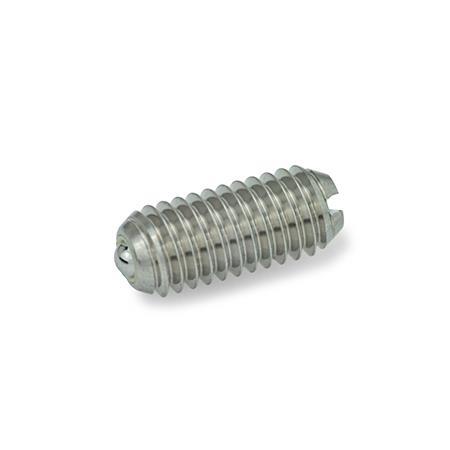

Ball with Friction Bearing, with Slot
GN 615.8 Stainless Steel Spring Plungers
Type
| KN | Stainless steel, standard spring load |
| KSN | Stainless steel, high spring load |
| d1 | d2 | Length l | w compression | Spring load in N ≈ standard (Type KN) initial | end | Spring load in N ≈ high (Type KSN) initial | end |
|---|---|---|---|---|---|---|---|
| M 5 | 2 | 12 | 0,5 | 4,8 | 6,8 | 10 | 14 |
| M 6 | 2,5 | 14 | 0,7 | 6,3 | 10 | 11 | 16 |
| M 8 | 3,5 | 16 | 0,95 | 16 | 24 | 23 | 40 |
| M 10 | 4,5 | 19 | 1,4 | 18,8 | 31,7 | 28 | 54,3 |
| M 12 | 6,5 | 22 | 2,3 | 26 | 49 | 39,5 | 77,3 |
| M 16 | 8,5 | 24 | 3,1 | 38 | 68 | 50 | 88,7 |
Filter combination produces no result.
Specification
Housing
Stainless steel AISI 303
Ball
Stainless steel AISI 420C, hardened
Pressure spring
Stainless steel AISI 631
Friction bearing
Identification of type KSN:
Housing with 2 longitudinal markings
RoHS
Stainless steel AISI 303
Ball
Stainless steel AISI 420C, hardened
Pressure spring
Stainless steel AISI 631
Friction bearing
- Plastic
- Temperature resistant up to 90 °C
Identification of type KSN:
Housing with 2 longitudinal markings
RoHS
Information
Stainless steel spring plungers GN 615.8 are used for locking as well as for pressure and hold-off functions.
The ball is mounted in a plastic shell so as to be freely movable, which enables rolling and therefor generally optimizes the locking characteristics. Above all, this reduces wear on the counter piece.
A further characteristic of these plungers is that the plastic bearing acts as an electrical insulator.
