for Grub Screws DIN 6332 / Tommy Screws DIN 6304 / DIN 6306

GN 6311.3 Foot Plates

Type

OS	Without plastic cap
KS	With plastic cap, gliding
KR	With plastic cap, non-gliding

Show filter

d₁	h	d₂ +0,2	e ≈	s	suitable for grub screw DIN 6332

50	11,5	9,2	3,7	1,7	M 12
50	13,5	12,5	4	1,7	M 16
60	13,5	12,5	4	1,7	M 16
60	15,5	16,5	4,3	1,7	M 20

Filter combination produces no result.

Specification

Steel
Zinc plated, blue passivated

Retaining spring
Stainless steel AISI 301

Plastic caps:

Type KS
Technopolymer (Polyacetal POM)
White (natural colour) RAL 9001
Type KR
Elastomer (TPE)
Hardness ≈ 75 Shore A
Black

Plastic Characteristics

Elastomer Characteristics

Stainless Steel Characteristics

RoHS

Accessory

Grub Screws DIN 6332

Tommy Screws DIN 6304

Tommy Screws DIN 6306

Information

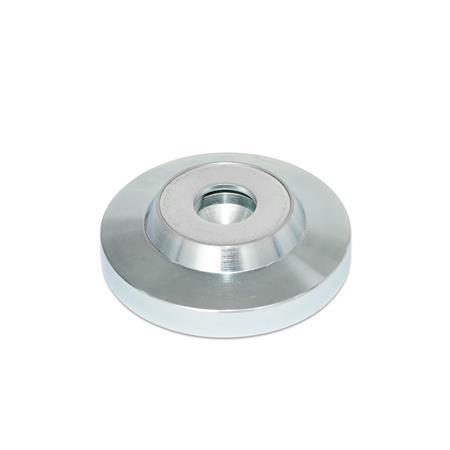

Foot plates GN 6311.3 are used in connection with screws with pivots (grub screws DIN 6332, tommy screws DIN 6304, DIN 6306) for installing and leveling devices and mechanisms.

Owing to the special shape of the immovable retaining ring, the foot plate is easily plugged onto and removed from, the pivot.

The types KS and KR with plastic cap prevent damage to sensitive surfaces. Due to the large plate diameter d₁, the contact pressure remains within tolerable limits.

How to order
