Plastic

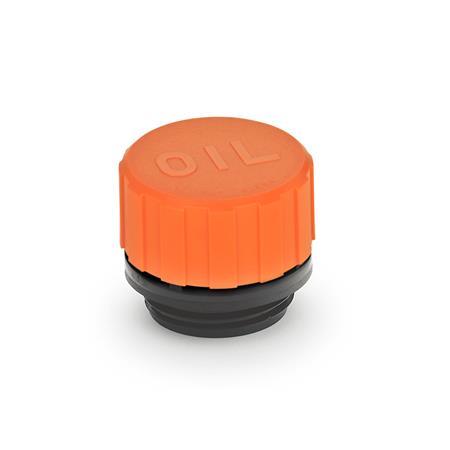

GN 663 Breather Caps, with / without filter, with / without dipstick
ELESA Original design SFN./SFB.
Type
| A | Without dipstick |
| B* | With dipstick |
Identification no.
| 2 | With splash guards, with PU filter |
| 4 | Without splash guards, with PU filter |
| d1 | d2 Thread | d3 | d4 | d5 | d6 | d7 | l1 | l2 | l3 | l4 | l5 | l6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 70 | G 3/4 | - | 68 | 35 | 16 | - | 15 | 6 | 63 | - | - | 173 |
| 70 | G 1 1/4 | - | 68 | - | 23 | - | 17 | - | 59 | - | - | 179 |
| 70 | G 2 | - | 68 | - | 23 | - | 17 | - | 59 | - | - | 179 |
| 70 | - | BA39 | 68 | - | - | 23 | - | - | - | 14 | 56 | 179 |
Filter combination produces no result.
* only available for identification no. 2
Specification
Plastic
Seal
Rubber NBR (Perbunan®)
Air filter PU-foam (Polyurethane)
Dipstick
Steel, phosphated
RoHS
- Temperature resistant up to 100 °C
- Upper part (cap)
Orange, RAL 2004OR
- Lower part (threaded part / bayonet)
Black, matte finish
Seal
Rubber NBR (Perbunan®)
Air filter PU-foam (Polyurethane)
- Filtration 40 µm
- Temperature resistant up to 100° C
Dipstick
Steel, phosphated
RoHS
On request
Fluid level markings / special lengths
see GN 109
Cap without imprint "OIL" or other imprint
see GN 109
Cap without imprint "OIL" or other imprint
Information
Function and operational criteria of breather caps GN 663, see description of function.
Breather caps can be connected by either a threaded or a bayonet (BA) fitting and filler strainer GN 664 or GN 664.1.
The bayonet type can be secured by means of the attached chain.
MAX-MIN markings can easily be added to the flats of a dipstick (see GN 109).
| How to order |
| ||||||||
GN 663-70-BA39-A-4 |
