Plastic, Threaded Stud Stainless Steel

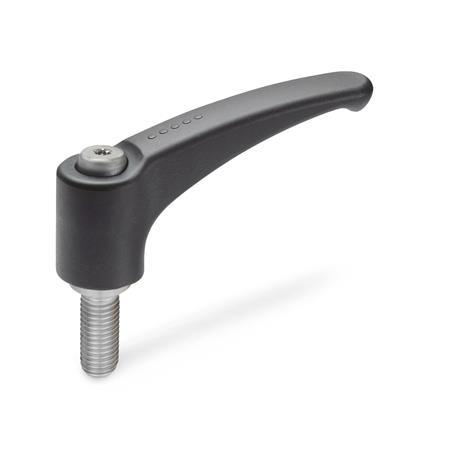

GN 604.1 Adjustable Hand Levers

Adjustable Hand Levers GN 604.1 thumbnail

ELESA original design: ERZ.SST-p Info

Show filter

l₁	d₁			l₂							d₂	d₃	h₁	h₂	h₃	h₄ Stroke

44	M 4	-	-	12	16	20	25	32	-	-	10	15,5	24,5	3,5	30,5	3,5
44	M 5	M 6	-	12	16	20	25	32	40	50	10	15,5	24,5	3,5	30,5	3,5
63	M 6	M 8	-	16	20	25	32	40	50	63	13,5	19	31	3,5	38,5	4
78	M 8	M 10	M 12	20	25	32	40	50	63	80	16	23	36	3,5	46,5	4
95	M 10	M 12	-	20	25	32	40	50	63	80	19	26,5	43	5	56,5	4

Filter combination produces no result.

Specification

Handle
Plastic

Glass fiber reinforced
Temperature resistant up to 130 °C
Black-gray, RAL 7021, matte finishSG
Orange, RAL 2004, matte finishOR

Annular gear ring
Zinc die casting

Threaded stud and retaining screw
Stainless steel AISI 303

Stainless Steel Characteristics

Plastic Characteristics

RoHS

Information

Adjustable hand levers GN 604 like all the products of the Ergostyle® family are renowned for their good style but also their ergonomical shape.

Pulling the lever disengages the serration and allows it to be turned in either direction to reach the ideal new location. On releasing the handle the serrations re-engage automatically.
