Steel, Zinc Plated, with Fixing Lug, Drop Shape

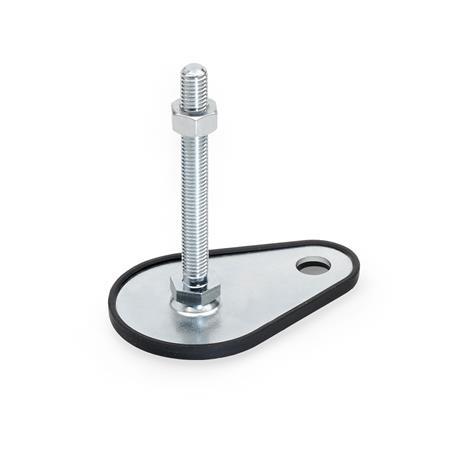

GN 42 Leveling Feet

Type (Base)

A0	Without rubber pad
A1	With rubber pad, clipped on, black
A3	With rubber pad, vulcanized, black

Version (Screw)

S	Without nut, external hexagon at the bottom
SK	With nut, external hexagon at the bottom
U	Without nut, hexagon socket at the top and wrench flat at the bottom
UK	With nut, hexagon socket at the top and wrench flat at the bottom
X	External hexagon with internal thread

Show filter

d₁	d₂	l₁ Version S / SK				Version U / UK						l₇ Version X	d₃	h₁	h₆	l₈	m	r	s

50	M 8	40	50	63	-	-	-	-	-	-	-	25	13	2,5	4	60	45	15	2
50	M 10	50	60	80	100	-	-	-	-	-	-	28	13	2,5	4	60	45	15	2
50	M 12	60	80	100	125	-	-	-	-	-	-	32	13	2,5	4	60	45	15	2
50	M 16	-	-	-	-	75	100	125	150	200	250	37	13	2,5	4	60	45	15	2
60	M 8	40	50	63	-	-	-	-	-	-	-	25	13	2,5	4,5	65	50	15	2
60	M 10	50	60	80	100	-	-	-	-	-	-	28	13	2,5	4,5	65	50	15	2
60	M 12	60	80	100	125	-	-	-	-	-	-	32	13	2,5	4,5	65	50	15	2
60	M 16	-	-	-	-	75	100	125	150	200	250	37	13	2,5	4,5	65	50	15	2
80	M 8	40	50	63	-	-	-	-	-	-	-	26	13	3	5	85	70	15	2
80	M 10	50	60	80	100	-	-	-	-	-	-	29	13	3	5	85	70	15	2
80	M 12	60	80	100	125	-	-	-	-	-	-	32	13	3	5	85	70	15	2
80	M 16	-	-	-	-	75	100	125	150	200	250	38	13	3	5	85	70	15	2
80	M 20	-	-	-	-	75	100	125	150	200	250	45	13	3	5	85	70	15	2
80	M 24	-	-	-	-	100	125	150	200	300	-	-	13	3	5	85	70	15	2

Filter combination produces no result.

d₁	d₂	h₃	h₄	A/F₁	A/F₂	A/F₃	A/F₇	t

50	M 8	11	-	17	-	-	14	8
50	M 10	11	-	17	-	-	14	10
50	M 12	11	-	17	-	-	17	12
50	M 16	-	17	-	12	8	22	16
60	M 8	11	-	17	-	-	14	8
60	M 10	11	-	17	-	-	14	10
60	M 12	11	-	17	-	-	17	12
60	M 16	-	17	-	12	8	22	16
80	M 8	12	-	17	-	-	14	8
80	M 10	12	-	17	-	-	14	10
80	M 12	12	-	17	-	-	17	12
80	M 16	-	18	-	12	8	22	16
80	M 20	-	19	-	15	10	27	20
80	M 24	-	22	-	19	12	-	-

Filter combination produces no result.

Specification

Base plate
Steel
Zinc plated, blue passivated

Threaded stem
Steel
Zinc plated, blue passivated

Hexagon nut ISO 4032
Steel
Zinc plated, blue passivated

Rubber pad

Clipped on
Black, TPE (Santoprene^®)
≈ 80 Shore A

Rubber pad

Vulcanised
Black, NBR(Perbunan^®)
70±5 Shore A

Elastomer Characteristics

Load rating of levelling feet GN 40 / GN 42

RoHS

Information

Leveling feet GN 42 can be used in a host of combinations of base plates and adjustable spindle versions.

The leveling feet can be screwed to the mounting surface use the fixing lug, which prevents lateral shifting. Moreover, the types with the rubber pad protect sensitive surfaces.

The leveling feet are supplied fully assembled and are not removable.
