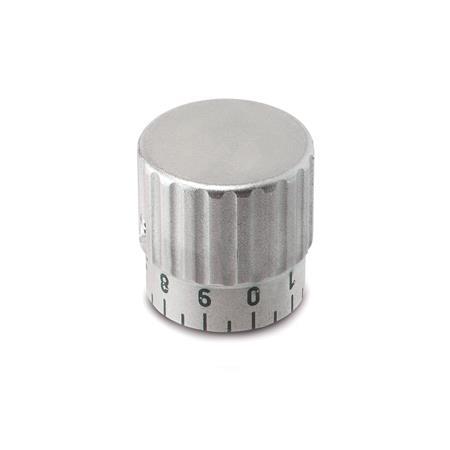

GN 436.1 Stainless Steel Control Knobs
Type
| A | With arrow |
| B | Neutral, without arrow or scale |
| S | With standard scale 0...9, 20 graduations |
| d1 | d2 H8 Bore | d3 | d4 | h1 | h2 | Length l | t min. | |
|---|---|---|---|---|---|---|---|---|
| 24 | B 5 | B 6 | 22 | M 4 | 24 | 8 | 12 | 18 |
| 28 | B 6 | B 8 | 26 | M 4 | 27 | 9 | 13 | 20 |
Filter combination produces no result.
Specification
Stainless steel
Scale (type S) and arrow (type A)
Engraved with laser precision
Stainless steel grub screw DIN 916
with internal hexagon and with serrated point
RoHS
- AISI 304
- Matte shot-blastedMT
Scale (type S) and arrow (type A)
Engraved with laser precision
Stainless steel grub screw DIN 916
with internal hexagon and with serrated point
RoHS
Information
Scale and arrow on the stainless steel control knobs GN 436.1 are indelibly marked and easily legible.
Besides the standard scale (type S) the control knobs can be supplied with any type of graduation.
Regarding design, numbering run, numbering position and numbering sequence of the scale please see the layout for scale knobs on the order sheet „How to Order Graduations“
| How to order |
| ||||||||
GN 436.1-28-B6-S-MT |
