Aluminum

GN 191.1 T-Angle Linear Actuator Connectors

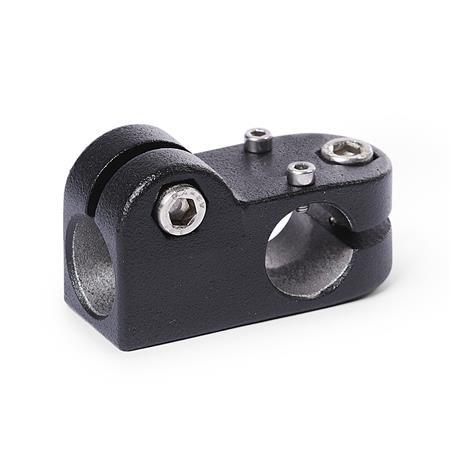

T Angle Linear Actuator Connectors GN 191.1 thumbnail

T Angle Linear Actuator Connectors GN 191.1 sketch

Identification no.

2	With 2 stainless steel socket cap screws DIN 912

Show filter

d₁ Bore without sleeve bearing	Bore with sleeve bearing	d₂ Bore	d₃ Mounting screws on the drive key	k Clamping length	l₁	l₂	m	z₁ Screw location	z₂ Screw location	Accessory Recommended hand lever GN 911 for Aluminum for z₁ l₃	for z₂ l₃

B 18	G 18	B 18	M 3	25	61	34,5	39	M6-20	M6-20	-	45	63

Filter combination produces no result.

Specification

Aluminum
Powder coated
Black, RAL 9005, textured finishSW

Sleeve bearing
Plastic (PTFE)

Socket cap screws DIN 912
Stainless Steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

Plastic Characteristics

Stainless Steel Characteristics

RoHS

Accessory

Adjustable hand levers GN 911

Information

T-angle linear actuator connectors GN 191.1 are based on T-angle connector clamps. The additionally provided fastening holes are used to connect to the drive key of a linear actuator. Bores with the designation G''' are equipped with sleeve bearings.

With the screw location z₂, the play of the guide bores d₁ can be adjusted or the linear actuator connectors can be clamped after adjustment.

For quick clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
