GN 7430 Mounting Nuts

Show filter

d₁	b	d₂ +0,3 recommended bore-Ø	e ≈	s

M 12 x 1,5	3	12	17,5	16
M 14 x 1,5	3	14	19,5	18
M 16 x 1,5	3	16	23	21
M 20 x 1,5	4	20	26	24
M 26 x 1,5	4	26	32,5	30
M 27 x 1,5	4	27	34,5	32
M 33 x 1,5	5	33	44,5	41
M 40 x 1,5	5	40	50,5	46
M 42 x 1,5	5	42	54,5	50

Filter combination produces no result.

d₁	b	d₂ +0,3 recommended bore-Ø	e ≈	s

G 1/4	3	13,2	17,5	16
G 3/8	3	16,7	23	21
G 1/2	4	21	26	24
G 3/4	4	26,5	32,5	30
G 1	5	33,3	44,5	41
G 1 1/4	5	42	50,5	46
G 1 1/2	6	47,9	61	55
G 2	6	59,7	72	65
-	-	-	-	-

Filter combination produces no result.

Specification

BrassMS
Plain

RoHS

Information

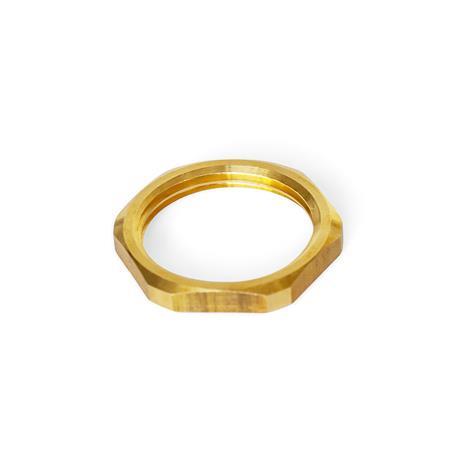

Mounting nuts GN 7430 are used, for example, to fasten breather elements, oil level sight glasses or threaded plugs when the wall is too thin for inserting a thread or this is to be avoided for manufacturing simplification.

The sufficiently large hexagonal profile is chamfered on one side only, which increases the bearing surface and the thread length.

How to order
