for Vertical Installation
GN 664 Filler Strainer
ELESA Original design FRB+C

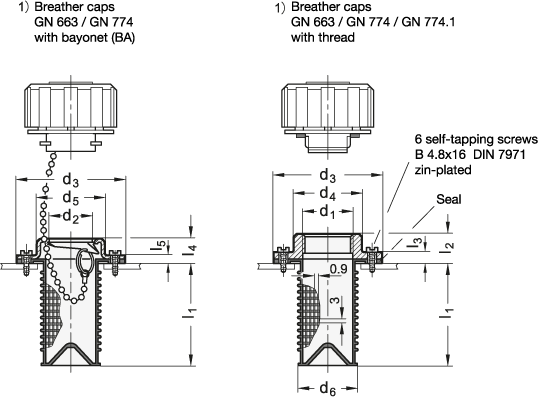

| d1 Thread | d2 Bayonet BA | l1 | d3 | d4 | d5 | d6 | l2 | l3 | l4 | l5 |
|---|---|---|---|---|---|---|---|---|---|---|
| G 1 1/4 | - | 94 | 83 | 56 | - | 49 | 23 | 9 | - | - |
| - | BA 39 | 94 | 83 | - | 58 | 49 | - | - | 20 | 7 |
Filter combination produces no result.
1) Breather caps are to be ordered separately.
Specification
Threaded flange
Plastic
Filler strainer
Plastic
Technoplymer (Polypropylene PP)
Flange for fitting bayonet
Steel, zinc plated, blue passivated
Seal cork
Impregnated with rubber
RoHS
Plastic
- Glass fiber reinforced
- Black, matte finish
Filler strainer
Plastic
Technoplymer (Polypropylene PP)
- Glass fiber reinforced
- Temperature resistant up to 90 °C
- Black, matte finish
Flange for fitting bayonet
Steel, zinc plated, blue passivated
Seal cork
Impregnated with rubber
RoHS
On request
Mounting flange without filler strainer
Information

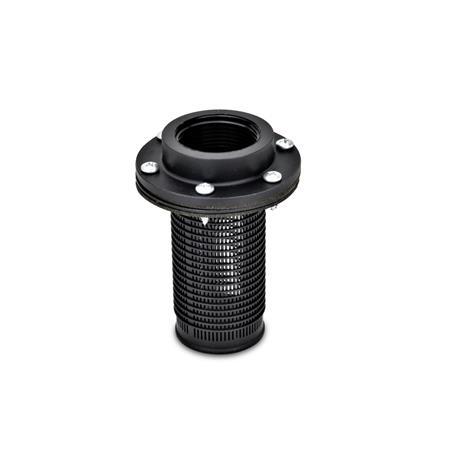

Filler strainers GN 664 are available with mounting flange for threaded or bayonet (BA) connection. Filler strainers prevent the ingress of coarse impurities during the refilling process.
Six self-tapping screws are included parts of the order.
see also...
| How to order |
| ||||
GN 664-BA39-94 |
RoHS compliant:
-
-
Weight:
-
-
