Aluminum, Resistant up to 100 °C
GN 741 Threaded Plugs
Type
| OS | Neutral, plain |
| OSS | Neutral, black anodized |
| ES | With DIN re-fill symbol, plain |
| ESS | With DIN re-fill symbol, black anodized |

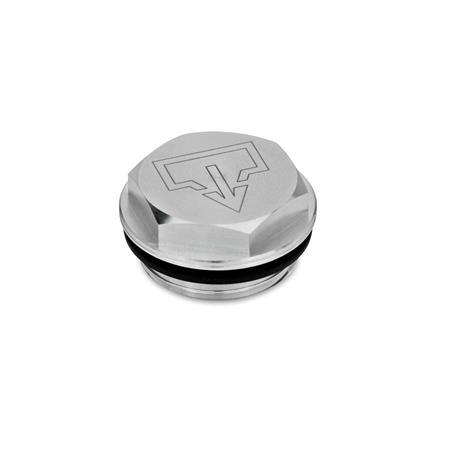

| AS | With DIN drain symbol, plain |
| ASS | With DIN drain symbol, black anodized |
Identification no.
| 1 | Without vent drilling |
| 2 | With vent drilling |
| d1 | d2 | d3 Vent drilling | d4 | e ≈ | l1 | l2 | s | t | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 19 | G 1/4 | M 14 x 1,5 | - | - | 2 | M 5 | 17,3 | 15,5 | 8 | 15 | 8 |
| 22 | G 3/8 | M 16 x 1,5 | - | - | 2 | M 5 | 20,8 | 15,5 | 8 | 18 | 8 |
| 26 | G 1/2 | M 20 x 1,5 | - | - | 2 | M 5 | 24,3 | 16 | 8,5 | 21 | 8 |
| 32 | G 3/4 | M 26 x 1,5 | M 27 x 1,5 | - | 2 | M 5 | 31,2 | 17 | 9 | 27 | 8 |
| 40 | G 1 | M 33 x 1,5 | - | - | 2 | M 5 | 37 | 19,5 | 11 | 32 | 8 |
| 50 | G 1 1/4 | M 40 x 1,5 | M 42 x 1,5 | M 42 x 2 | 2 | M 5 | 47,3 | 21 | 12 | 41 | 8 |
| 60 | G 1 1/2 | - | - | - | 2 | M 5 | 57,7 | 22 | 13 | 50 | 8 |
Filter combination produces no result.
Specification
Aluminum
Seal
Ethylene propylene diene rubber (NBR)
RoHS
- Type OS, ES and AS
Fine turned, plain - Type OSS, ESS and ASS
Fine turned, black anodized - Symbols laser engraved
Seal
Ethylene propylene diene rubber (NBR)
- Black
- Temperature resistant up to 100 °C
RoHS
On request
With dipstick
Information
Threaded plugs GN 741 are fitted with outside diameter d1 to suit screw holes with BSP threads to DIN 3852.
The sealing ring is embedded in a radial recess on the flat side. This prevents the seal from being lost or squeezed out during tightening.
| How to order |
| ||||||||
GN 741-26-G1/2-OSS-1 |
