Sheet Steel, for Profile Systems

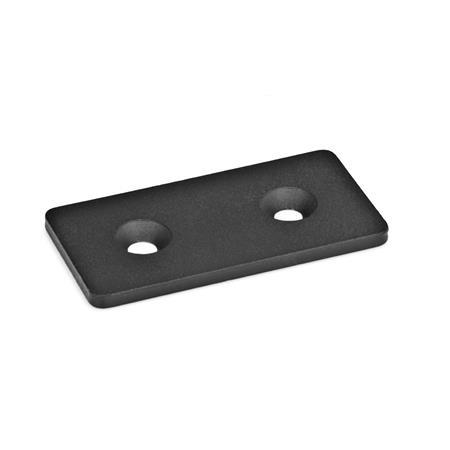

GN 967 Angle Pieces / Shackles
Type
| F | Shackle |
| L | Angle |
Identification no.
| 1 | With bore for countersunk screws DIN 7991 |
| 2 | With bore without countersunk |
| b | l1 Type F | l2 Type L | l3 | m | d | s |
|---|---|---|---|---|---|---|
| 20 | 40 | 20 | 10 | 20 | 5,2 | 3 |
| 30 | 60 | 30 | 15 | 30 | 6,3 | 4 |
| 40 | 80 | 40 | 20 | 40 | 8,3 | 5 |
| 45 | 90 | 45 | 22,5 | 45 | 8,3 | 5 |
Filter combination produces no result.
Specification
Sheet steel
RoHS
- Zinc plated, blue passivatedZB
- Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR
RoHS
Information
Angle pieces and shackles GN 967 are preferably used in connection with profile systems. Square connections or connections with same contact area can so be realised in the smallest of spaces and with a high degree of stability.
Over and above the profile system configurations, the angle pieces and shackles can also be used for a wide variety of different fixing and retaining tasks, for instance in the design of jigs and fixtures.
In the version with identification no. 2, the bores are designed without countersunk hole to allow fixing with socket cap screws, nuts or rivets.
| How to order |
| ||||||||||
GN 967-40-80-F-1-SW |
