GN 163 Base Plate Connector Clamps

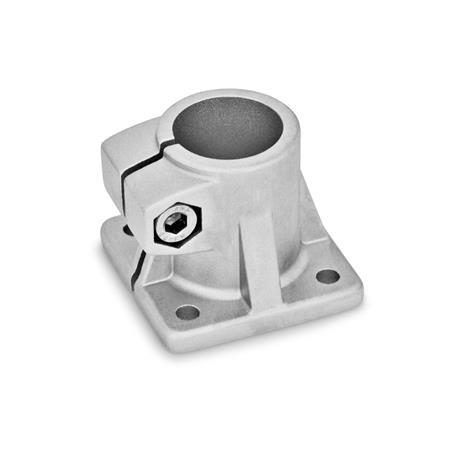

Base Plate Connector Clamps GN 163 thumbnail

Base Plate Connector Clamps GN 163 sketch

Identification no.

2	With stainless steel socket cap srew DIN 912

Show filter

d₁ Bore	k Clamping length	d₂	l₁	l₂	t	x₁	x₂	y₁	y₂	z Screw location

B 20	50	6,5	52	40	7	60	42	60	42	M8-25
B 25	50	6,5	52	40	7	60	42	60	42	M8-25
B 30	50	6,5	52	40	7	60	42	60	42	M8-25
B 30	70	8,5	68	56	10	90	64	90	64	M10-35
B 32	70	8,5	68	56	10	90	64	90	64	M10-35
B 35	70	8,5	68	56	10	90	64	90	64	M10-35
B 40	70	8,5	68	56	10	90	64	90	64	M10-35
B 40	85	11	77,5	65	14	105	74	105	74	M10-50
B 42	85	11	77,5	65	14	105	74	105	74	M10-50
B 45	85	11	77,5	65	14	105	74	105	74	M10-50
B 48	85	11	77,5	65	14	105	74	105	74	M10-50
B 50	85	11	77,5	65	14	105	74	105	74	M10-50
B 60	100	11	92	80	14	125	89	125	89	M10-50

Filter combination produces no result.

Specification

Aluminum

Powder coated
Black, RAL 9005, textured finishSW
Plain, Matte shot-blastedBL

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

Stainless Steel Characteristics

RoHS

On request

With inch bores

Information

The clamping bore of base plate connector clamps GN 163 is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

At the screw location z, the socket cap screw reduces the bore cross-section for clamping.
