Aluminum

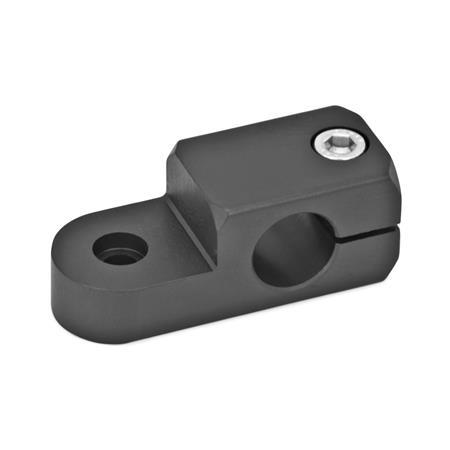

GN 482 Swivel Mounting Clamps

Type

Q	Clamping bore transverse to the swivel axis
P	Clamping bore parallel to the swivel axis

Show filter

d₁ Bore for shaft tol. h11	k	d₂	d₃ Swivel bore	d₄ Clamping thread	l₁	l₂	l₃	l₄	m	s Square	Clamping kit for d₃ Type S / K (Swivel joint)		Clamping kit for d₄ (Clamping bore)

B 8	16	7	4,5	M 4	40	32	23	8	18,5	-	GN 511.1-M4-16-S	GN 511.1-M4-16-K	GN 511-M4-16
B 10	20	8,5	5,5	M 5	50	40	29	10	23	8	GN 511.1-M5-20-S	GN 511.1-M5-20-K	GN 511-M5-20
B 12	20	8,5	5,5	M 5	50	40	29	10	23	10	GN 511.1-M5-20-S	GN 511.1-M5-20-K	GN 511-M5-20
B 15	25	10	6,5	M 6	62	49,5	36	12,5	29	12	GN 511.1-M6-25-S	GN 511.1-M6-25-K	GN 511-M6-25
B 16	25	10	6,5	M 6	62	49,5	36	12,5	29	-	GN 511.1-M6-25-S	GN 511.1-M6-25-K	GN 511-M6-25
B 20	30	10	6,5	M 6	70	55	39	15	33,5	16	GN 511.1-M6-30-S	GN 511.1-M6-30-K	GN 511-M6-30

Filter combination produces no result.

Specification

Aluminum

Matte, groundMT
Anodized blackELS

Socket cap screws DIN 912
Stainless steel AISI 304

ISO Fundamental Tolerances

Stainless Steel Characteristics

RoHS

Accessory

Clamping Kits GN 511

Clamping Kits GN 511.1

Information

Swivel mounting clamps GN 482 can be combined with T-swivel mounting clamps GN 483, attachment swivel mounting clamps GN 484 as well as base plate swivel mounting clamps GN 485 with the same k dimensions to swivel clamp mounting joints. Clamping kits GN 511.1 with screw (type S) and adjustable hand lever (type K) are available for this purpose.

In addition, the clamping screw d₄, which is a socket cap screw with hexagonal socket DIN 912 in the standard design, can be replaced by a clamping kit GN 511.

The article code for ordering is shown in the dimensional table.
