HA 5600

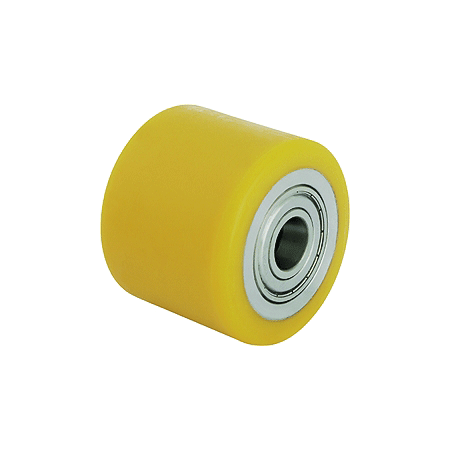

HA 5600 thumbnail

Zoom

Zoom

HA 5600 sketch

Show filter

d₁	l₁	d₂	b	T

60	35	15	35	180
60	56	10	60	320
75	40	20	40	270
75	62	20	62	410
75	75	20	75	500
75	95	20	95	640
80	40	20	40	280
80	54	20	54	380
80	54	20	62	440
80	56	20	56	400
80	59	20	54	380
80	60	20	54	380
80	68	20	74	530
80	70	20	70	500
80	80	20	80	570
80	89	20	95	680
82	26	12	28	200
82	32	12	34	250
82	55	17	55	400
82	52	20	50	360
82	56	20	60	440
82	57	20	62	450
82	60	20	60	440
82	62	20	60	440
82	62	20	70	510
82	63	20	65	470
82	64	20	62	450
82	65	20	62	450
82	65	20	65	470
82	66	20	70	510
82	70	20	70	510
82	72	20	70	510
82	76	20	70	510
82	72	20	72	530
82	74	20	72	530
82	78	20	72	530
82	80	20	80	580
82	90	20	90	660
82	98	20	96	700
82	96	20	100	730
82	98	20	98	720
82	100	20	100	730
82	104	20	100	730
82	52	25	60	440
82	60	25	60	440
83	83	25	83	620
83	114	30	115	850
84	78	17	74	550
85	60	17	60	450
85	62	17	70	530
85	67	17	85	650
85	69	17	87	660
85	70	17	70	530
85	75	17	75	570
85	82	17	90	680
85	89	17	87	660
85	90	17	90	680
85	100	17	100	760
85	51	20	75	570
85	60	20	60	450
85	65	20	65	490
85	70	20	70	530
85	75	20	75	570
85	77	20	75	570
85	78	20	78	590
85	79	20	75	570
85	80	20	80	610
85	83	20	90	680
85	85	20	85	650
85	90	20	90	680
85	92	20	90	680
85	95	20	95	720
85	98	20	100	760
85	100	20	100	760
85	102	20	100	760
85	104	20	100	760
85	74	25	80	610
85	75	25	75	570
85	80	25	80	610
85	85	25	85	650
85	100	25	100	760
85	110	25	110	840
90	40	20	42	340

Filter combination produces no result.

Specification

RoHS

Information

see also...

seiten 4-6, technik.pdf

How to order

1	Werkstoff
2	d₁
3	l₁
4	d₂
5	b

5600-PU-82-26-12-28

RoHS compliant: Info

Info

-

Weight:

Info

-
