GN 631.5 Stainless Steel Thrust Pads

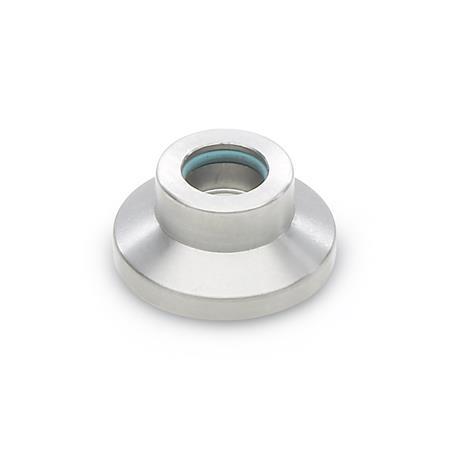

Stainless Steel Thrust Pads GN 631.5 thumbnail

Stainless Steel Thrust Pads GN 631.5 sketch

Show filter

d₁	d₂	d₃	e ≈	h₁	h₂	Grub screws GN 632.5

21	4,5	12,8	6	10	3	M 6
21	6,1	12,8	5	10	3	M 8
21	7,8	12,8	4,3	10	3	M 10
21	9,4	12,8	3,4	10	3	M 12
25	4,5	13	6,5	10,5	3	M 6
25	6,1	13	5,5	10,5	3	M 8
25	7,8	13	4,6	10,5	3	M 10
25	9,4	13	3,6	10,5	3	M 12
32	4,5	14	7	11	3	M 6
32	6,1	14	6	11	3	M 8
32	7,8	14	5	11	3	M 10
32	9,4	14	4,2	11	3	M 12
40	6,1	16	8	13	4	M 8
40	7,8	16	7	13	4	M 10
40	9,4	16	6,2	13	4	M 12
50	6,1	16	10,4	15,5	4	M 8
50	7,8	16	9,3	15,5	4	M 10
50	9,4	16	8,7	15,5	4	M 12

Filter combination produces no result.

Specification

Stainless steel AISI 303
O-Ring
Rubber FPM (Viton®)
Temperature resistant up to 200 °C

Information of static load

Stainless Steel Characteristics

RoHS

Information

Thrust pads GN 631 are suitable for universal use and are combined with ball point grub screws GN 632.5. These can be easily pressed into the thrust pad and removed again, if necessary.

How to order
