with Ceramic Ball, Stainless Steel AISI 316L

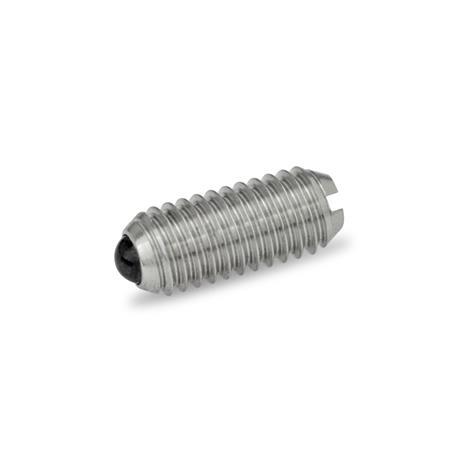

GN 615.5 Stainless Steel Spring Plungers
Type
| KN | Stainless steel, standard spring load |
| KSN | Stainless steel, high spring load |
| d1 | d2 | Length l | w compression | Spring load in N ≈ standard (Type KN) initial | end | Spring load in N ≈ high (Type KSN) initial | end |
|---|---|---|---|---|---|---|---|
| M 4 | 2,5 | 9 | 0,8 | 8,5 | 14 | 12 | 18 |
| M 5 | 3 | 12 | 0,9 | 8 | 14 | 15 | 22 |
| M 6 | 3,5 | 14 | 1 | 11 | 18 | 19 | 28 |
| M 8 | 4,5 | 16 | 1,5 | 18 | 31 | 36 | 62 |
| M 10 | 6 | 19 | 2 | 24 | 45 | 57 | 104 |
| M 12 | 8 | 22 | 2,5 | 26 | 49 | 61 | 110 |
| M 16 | 10 | 24 | 3,5 | 41 | 86 | 68 | 142 |
Filter combination produces no result.
Specification
Housing
Stainless steel AISI 316L
Ball
Ceramic
Silicon nitride, black
Pressure spring
Stainless steel AISI 631
Identification of type KSN:
Housing with 2 longitudinal markings
RoHS
Stainless steel AISI 316L
Ball
Ceramic
Silicon nitride, black
Pressure spring
Stainless steel AISI 631
Identification of type KSN:
Housing with 2 longitudinal markings
RoHS
Information
Stainless steel spring plungers GN 615.5 are used for locking as well as for pressure and hold-off functions.
Due to the selection of materials, the stainless steel spring plungers are suitable for use in highly corrosive environments. In addition the ceramic ball is low wearing, anti-magnetic and electrically insulating.
see also...
- with hexagon socket
| How to order |
| ||||
GN 615.5-M8-KSN |
