Aluminum, for Tube Clamp Connectors

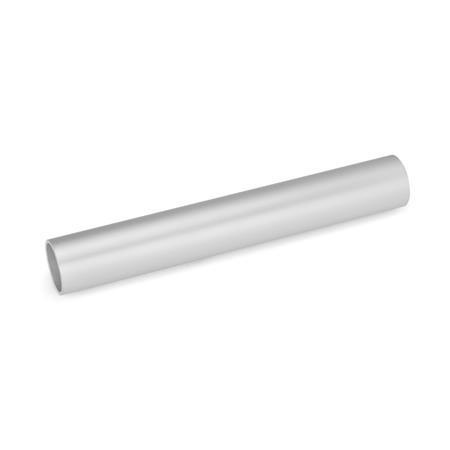

GN 990 Construction Tubes

Show filter

d₁ Diameter	s₁ Square	Length l ±0,5				d₂	s₂	w₁	w₂

D 10 +0,05/-0,15	V 10	200	500	1000	-	7	7	1,5	1,5
D 12 +0,05/-0,15	V 12	200	500	1000	-	9	9	1,5	1,5
D 14 +0,05/-0,15	-	200	500	1000	-	11	-	1,5	-
D 15 +0,05/-0,15	-	200	500	1000	-	12	-	1,5	-
D 16 +0,05/-0,15	V 16	200	500	1000	-	13	13	1,5	1,5
D 18 +0,05/-0,15	-	200	500	1000	-	15	-	1,5	-
D 20 +0,1/-0,2	V 20	200	500	1000	2000	16	16	2	2
D 25 +0,1/-0,2	V 25	200	500	1000	2000	21	21	2	2
D 30 ±0,15	V 30	200	500	1000	2000	26	26	2	2
D 35 ±0,15	-	200	500	1000	-	31	-	2	-
D 40 +0,15/-0,25	V 40	200*	500	1000	2000	34	34	3	3
D 50 ±0,2	V 50	500	1000	2000	-	44	44	3	3
D 60 ±0,25	-	500	1000	2000	-	52	-	4	-

Filter combination produces no result.

* only available for diameter D40

Specification

AluminumAL
Anodized, natural colorEL

Sawed cross sections deburred blank, i.e. not surface treated.

RoHS

On request

Further lengths

Information

Construction tubes GN 990 can be supplied in these standard lengths.

The tolerances specified for the outside diameter of the round construction tubes comply with the requirements for split mono-block connector clamps. Two-piece connector clamps allow obviously larger tolerances on construction tubes.

How to order
