Stainless Steel

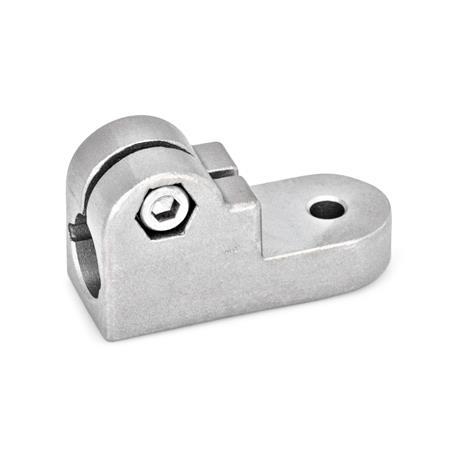

GN 275 Swivel Clamp Connectors

Swivel Clamp Connectors GN 275 thumbnail

Identification no.

2	With stainless steel socket cap srew DIN 912

Show filter

d₁ Bore	b Swivel width	d₂	k	l₁	l₂	m	s	t	z Screw location	Accessory Recom. hand lever GN 911.3 for z l₃

B 12	25	6,5	31,5	61	34,5	48,5	10	12,5	M6-20	-
B 14	25	6,5	31,5	61	34,5	48,5	10	12,5	M6-20	-
B 15	25	6,5	31,5	61	34,5	48,5	10	12,5	M6-20	-
B 16	25	6,5	31,5	61	34,5	48,5	10	12,5	M6-20	-
B 18	25	6,5	31,5	61	34,5	48,5	10	12,5	M6-20	63
B 20	25	6,5	31,5	61	34,5	48,5	10	12,5	M6-20	45 \| 63

Filter combination produces no result.

Specification

Stainless steelNI AISI CF-8
Matte shot-blasted

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

Stainless Steel Characteristics

RoHS

Accessory

Adjustable Hand Levers GN 911.3

Information

The clamping bore of swivel clamp connectors GN 275 is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

At the screw location z, the socket cap screw reduces the bore cross-section for clamping.

For clamping without tools, the socket cap screw can be replaced by an adjustable hand lever GN 911.3 listed in the table as accessory.

Swivel clamp connectors GN 275 can be combined with swivel clamp connectors GN 271, GN 273 or GN 277 to swivel clamp connector joints.
