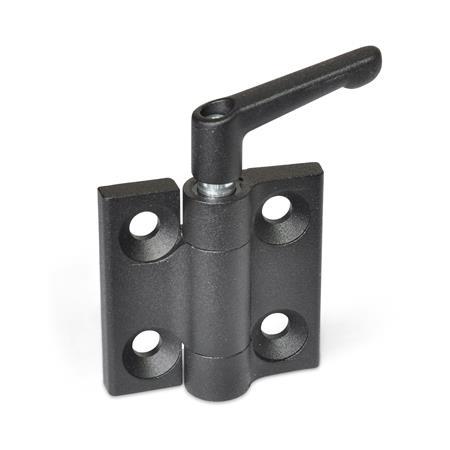

GN 437.2 Hinges

Type

A	2x2 bores for countersunk screws

Show filter

l₁	l₂	d	h₁	h₂	h₃	h₄	h₅ ≈	l₃	l₄	m₁	m₂

60	60	8,3	18,5	7,5	9,5	19	35	20	45	36	36

Filter combination produces no result.

Specification

Zinc die castingZD
Powder coated
Black, RAL 9005, textured finishSW

Silver, RAL 9006, textured finishSR

Guide sleeve
Plastic (Polyacetal POM)
Temperature resistant up to 80 °C

Adjustable hand levers

Zinc die casting
Powder coated
Black for SW
Silver for SR
Threaded stud and retaining screw
Steel zinc plated, blue passivated

Load rating information of metal hinges

Plastic Characteristics

RoHS

Accessory

Stainless Steel Spacer Plates GN 2370

Stainless Steel Plates with Tapped Holes GN 2372

Information

With GN 437.2 Hinges, doors and covers can be secured at any desired angular position.

In its rest position, the hand lever is not connected to the locking thread of the hinge axis, i.e., it can be freely rotated. The serration only engages when the handle is pressed down, allowing the hinge to be clamped.

This prevents the engagement from releasing unintentionally. It additionally ensures that the hand lever does not hinder the movement of the door or cover.

To adjust to the door or cover, the clamp must be disengaged before the hinge can be swung into the new position.
