Plastic, for Sensors/Reflectors

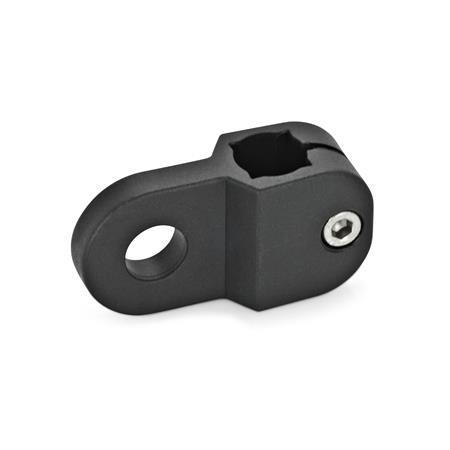

GN 176 Work Gripper Blocks
ELESA Original design MSX.
Type

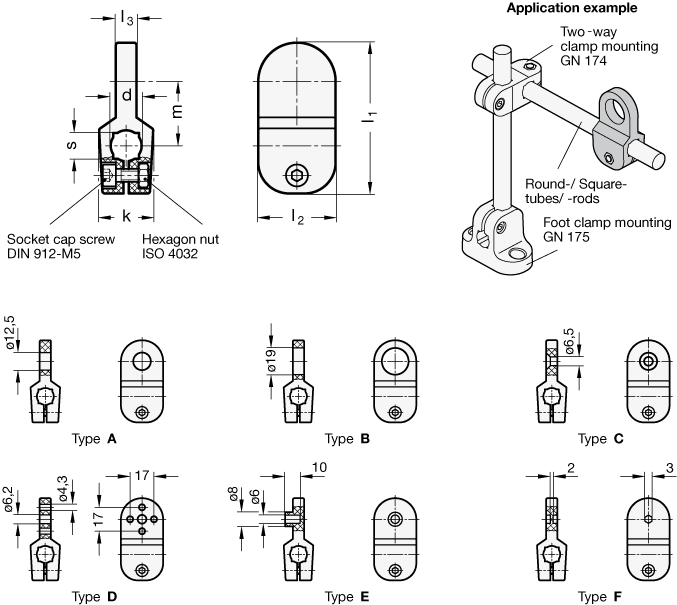

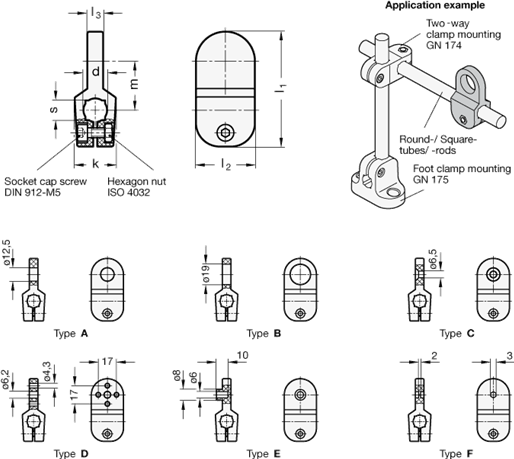

| A | For sensor mounting |
| B | For sensor mounting |
| C | With bore for countersunk screw M6 |
| D | For reflector mounting |
| E | For reflector mounting |
| F | For inserting specific drillings |
| d Bore | k | l1 | l2 | l3 | m | s Square |
|---|---|---|---|---|---|---|
| B 10 | 21 | 58,5 | 30 | 8 | 25 | V 8 |
| B 12 | 21 | 58,5 | 30 | 8 | 25 | V 10 |
| B 14 | 21 | 58,5 | 30 | 8 | 25 | V 12 |
Filter combination produces no result.
Specification
Plastic (Polyamide)
Socket cap screws DIN 912
Stainless steel AISI 304
Hexagon nuts ISO 4032
Stainless steel AISI 304
RoHS
- Glass fiber reinforced
- Temperature resistant up to 60 °C
- Black, matte finish
Socket cap screws DIN 912
Stainless steel AISI 304
Hexagon nuts ISO 4032
Stainless steel AISI 304
RoHS
Information
Work gripper blocks GN 176 are designed for recording commercial sensors and reflectors.
They are normally used in combination with clamp mountings and are designed for mounting both on round tubes (-rods) and on square tubes (-rods). A form-lock prevents the rotation of the clamping element in square tubes (-rods).
| How to order |
| ||||
GN 176-B14-A |
RoHS compliant:
-
-
Weight:
-
-
