with Long Threaded Bolt

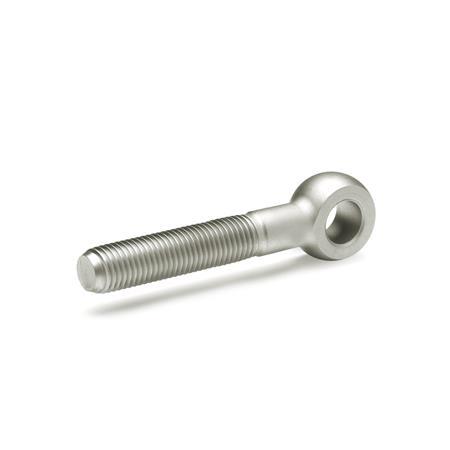

GN 1524 Stainless Steel Swing Bolts

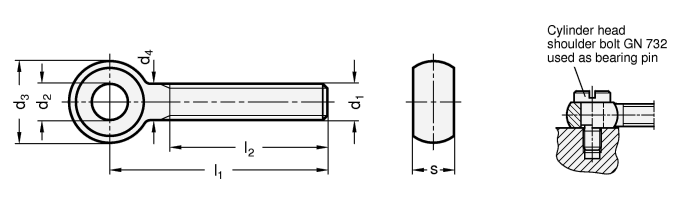

| d1 | l1 | l2 | d2 E8 | d3 -0,4 | s -0,2 | d4 | |||
|---|---|---|---|---|---|---|---|---|---|
| M 6 | 50 | 60 | 70 | 80 | 40 | 6 | 12 | 8 | 6 |
| M 8 | 50 | - | - | - | 40 | 8 | 16 | 10 | 8 |
| M 8 | 60 | 70 | 80 | 100 | 45 | 8 | 16 | 10 | 8 |
| M 10 | 50 | - | - | - | 38 | 10 | 20 | 12 | 10 |
| M 10 | 60 | - | - | - | 46 | 10 | 20 | 12 | 10 |
| M 10 | 70 | 80 | 100 | 120 | 50 | 10 | 20 | 12 | 10 |
| M 12 | 50 | - | - | - | 35 | 12 | 25 | 14 | 12 |
| M 12 | 60 | - | - | - | 42 | 12 | 25 | 14 | 12 |
| M 12 | 70 | - | - | - | 52 | 12 | 25 | 14 | 12 |
| M 12 | 80 | 100 | 120 | 130 | 60 | 12 | 25 | 14 | 12 |
| M 16 | 70 | - | - | - | 49 | 16 | 32 | 18 | 16 |
| M 16 | 80 | - | - | - | 59 | 16 | 32 | 18 | 16 |
| M 16 | 100 | - | - | - | 77 | 16 | 32 | 18 | 16 |
| M 16 | 120 | 140 | 160 | - | 80 | 16 | 32 | 18 | 16 |
| M 20 | 100 | - | - | - | 75 | 20 | 40 | 22 | 20 |
| M 20 | 120 | - | - | - | 95 | 20 | 40 | 22 | 20 |
| M 20 | 140 | 160 | - | - | 100 | 20 | 40 | 22 | 20 |
Filter combination produces no result.
Specification
Stainless steelNI AISI 303
RoHS
- Turned
- Matte shot-blasted
RoHS
Information
Stainless steel swing bolts GN 1524 offer a longer threaded bolt contrary to DIN 444.
For stocking purposes cylinder head shoulder bolts GN 732.1 can be used for the sizes M8, M10 and M12.
| How to order |
| ||||||
GN 1524-M20-160-NI |
RoHS compliant:
-
-
Weight:
-
-
