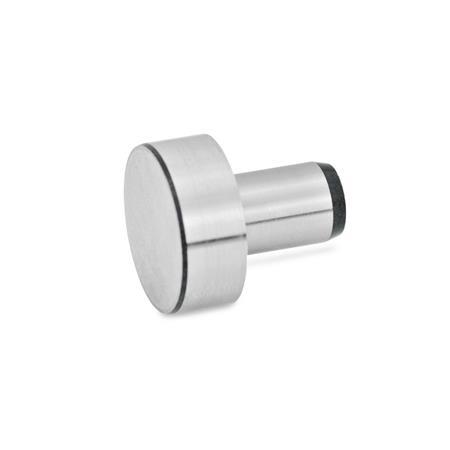

DIN 6321 Workholding Bolts / Headed Dowels

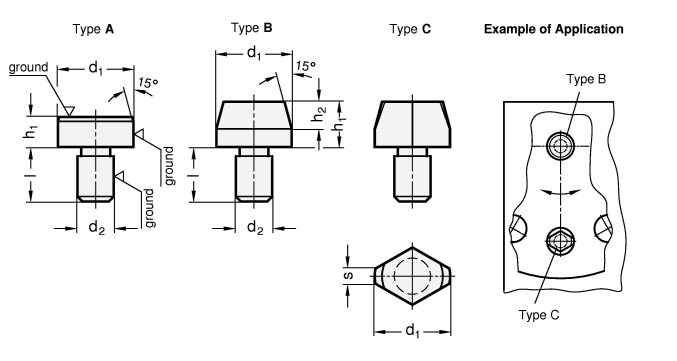

Type
| A | Headed dowel, low Type |
| B | Workholding bolt, high, cylindrical |
| C | Workholding bolt, high, flattened |
| d1 g6 Type A | Type B / C | h1 h9 Type A | h1 ±0,1 Type B / C | d2 n6 | h2 Type B / C | Length l | s ≈ Type C | |
|---|---|---|---|---|---|---|---|---|
| 6 | 6 | 5 | 7 | 12 | 4 | 4 | 6 | 1 |
| - | 8 | - | 10 | 16 | 6 | 6 | 9 | 1,6 |
| 10 | 10 | 6 | 10 | 18 | 6 | 6 | 9 | 2,5 |
| - | 12 | - | 10 | 18 | 6 | 6 | 9 | 2,5 |
| 16 | 16 | 8 | 13 | 22 | 8 | 8 | 12 | 3,5 |
| - | 20 | - | 15 | 25 | 12 | 9 | 18 | 5 |
| 25 | 25 | 10 | 15 | 25 | 12 | 9 | 18 | 5 |
Filter combination produces no result.
Specification
Steel
Type A:
With centre hole on the bottom
Type B / Type C:
With centre hole on both sides
RoHS
- Hardened
- Blackened
Type A:
With centre hole on the bottom
Type B / Type C:
With centre hole on both sides
RoHS
Information
Workholding bolts DIN 6321 are inserted into bores for positioning, assisted by the flattened design (type C) to compensate tolerances in the spacing of two bores. Another application of this design is to fix parts to be positioned in one direction only.
Types A and B can also be used as bearing surfaces, stops or as foot.
| How to order |
| ||||||
DIN 6321-10-6-A |
