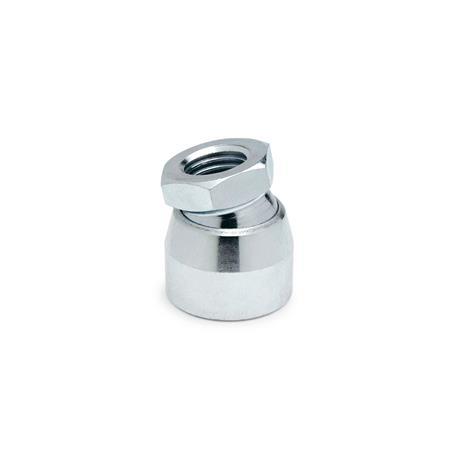

GN 346 Ball Joint Thrust Pads, Steel, zinc plated
| d1 | d2 | l1 ≈ | l2 | t min. | A/F | Static load in kN (See information) |
|---|---|---|---|---|---|---|
| 16 | M 8 | 19 | 7 | 9 | 12 | 5 |
| 20 | M 10 | 22 | 8 | 11 | 15 | 7,5 |
| 24 | M 12 | 25 | 10 | 12 | 17 | 10 |
| 30 | M 16 | 34 | 13 | 16 | 24 | 15 |
Filter combination produces no result.
Specification
Information
Ball joint thrust pads GN 346 are in general used for transfer of clamping forces. They adjust themselves to uneven or non-parallel surfaces and clamp without twisting the clamped parts.
The values were arrived at by a series of tests whereby a limited number of ball joint pads were subjected for a limited time to a vertical static load to the pads.
At the values given in the table a permanent deformation of the ball is almost impossible.
Ball joint thrust pads GN 346 can also be used as leveling feet with a small foot diameter.
see also...
| How to order |
| ||||
GN 346-20-M10 |
