Tapered, Stainless Steel
GN 456 Rubber Buffers
Type
| EE | With 2 internal threads |
| ES | With internal thread / threaded stud |
| SS | With 2 threaded studs |
| d1 | h Type EE | Type ES / SS | d2 | d3 | Length l | t |
|---|---|---|---|---|---|---|
| 10 | - | 10 | 8 | M 4 | 10 | 4 |
| 15 | 15 | 15 | 12 | M 4 | 10 | 4 |
| 20 | 15 | 15 | 14 | M 6 | 18 | 6 |
| 20 | 20 | 20 | 16 | M 6 | 18 | 6 |
| 25 | 20 | 20 | 20 | M 6 | 18 | 6 |
| 30 | 20 | 20 | 22 | M 8 | 20 | 8 |
| 40 | 25 | 25 | 30 | M 8 | 23 | 8 |
| 40 | 30 | 30 | 33 | M 8 | 23 | 8 |
| 50 | 30 | 30 | 42 | M 10 | 28 | 8 |
| 75 | 40 | 40 | 60 | M 12 | 37 | 11 |
Filter combination produces no result.
** not available from stock, requires a minimum order quantity
Specification
Natural rubber (NR)
Cover plates, threaded bushings, threaded studs
Stainless steel AISI 304
RoHS
- Black
- Vulcanized to the cover plates
- Temperature resistant up to 80 °C
- Hardness Shore A ±5
Soft40
Medium55
Hard70
Cover plates, threaded bushings, threaded studs
Stainless steel AISI 304
RoHS
On request
Rubber in gray
Information

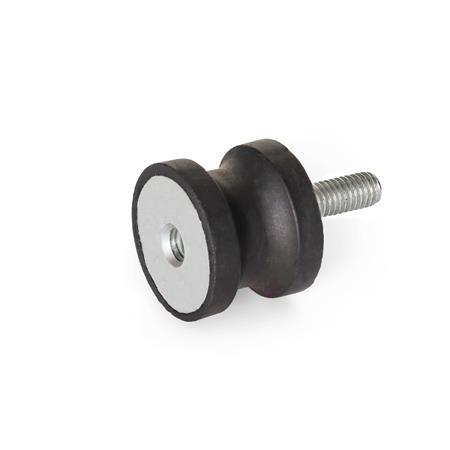

Rubber buffers GN 456 provide elastic support for equipment such as compressors and pumps.
The tapered shape absorbs side forces better compared with cylindrical rubber buffers. The rubber also does not swell past the cross section d1 under pressure loads.
see also...
| How to order |
| ||||||||||
GN 456-50-30-42-ES-55 |
RoHS compliant:
-
-
Weight:
-
-
