with and without Rest Positions

GN 413 Indexing Plungers, Steel, blackened

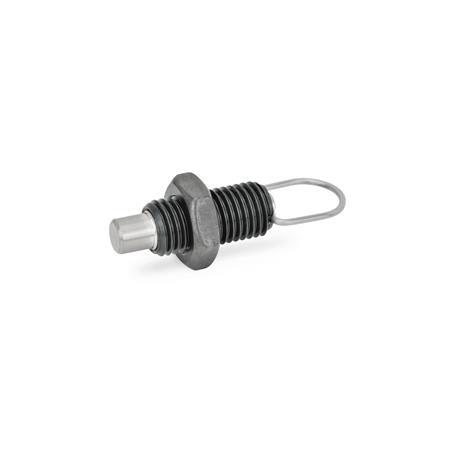

Indexing Plungers Steel blackened GN 413 thumbnail

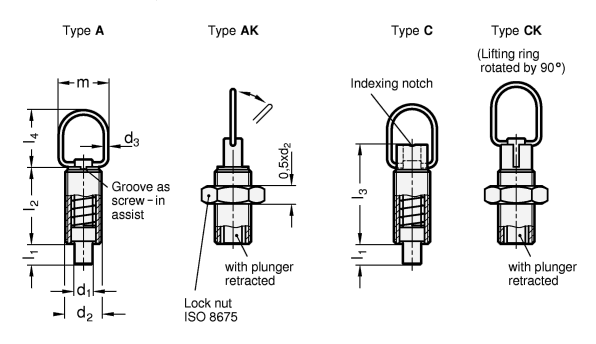

Indexing Plungers Steel blackened GN 413 sketch

Type

A	without rest position, without lock nut
AK	without rest position, with lock nut
C	with rest position, without lock nut
CK	with rest position, with lock nut

Show filter

d₁ Pin -0.05/-0.10 Bore H7	d₂	d₂	d₃	l₁min.	l₂	l₃	l₄	m	Spring load in N initial	end

5	M 10	M 10 x 1	1,5	5	22	28	23	18	5	15
6	M 12	M 12 x 1,5	2	6	24	31	25	22	6	21
8	M 16	M 16 x 1,5	2	9	34	44	25	22	7	27
10	M 16	M 16 x 1,5	2	9	34	44	25	22	7	27

Filter combination produces no result.

Specification

Guide (Threaded socket)
SteelST
Blackened

Plunger pin
Stainless steel AISI 303
Chemically nickel plated

Pressure spring
Stainless steel AISI 301

Lifting ring
Stainless steel AISI 301

Load Rating Information

ISO Fundamental Tolerances

RoHS

Information

Owing to its shape, the lifting ring of the indexing plungers GN 413 can be used both as a screw-in assist during assembly or as indexing lock (Type C / Type CK).

Indexing plungers with rest position are used when the indexing pin is temporarily not allowed to protrude. After the pin is pulled in, turn the pull ring by 90°. The ring is held in position by an indexing notch.
