Zinc Die Casting
GN 138 Hinges
Type
| A | With threaded blind bores |
| l1 | l2 short | long | d1 | d2 | h1 | h2 | l3 | l4 | l5 | l6 | m1 | m2 | m3 | t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 42 | 65 | M 5 | 5 | 15 | 9 | 34 | 54 | 12 | 18 | 25 | 25 | 22,5 | 6 |
| 50 | 52 | 80 | M 6 | 6 | 19,5 | 11,5 | 39 | 64 | 16 | 21 | 30 | 30 | 27,5 | 8 |
| 60 | 62 | 95 | M 6 | 8 | 23,5 | 13,5 | 47 | 77 | 20 | 24 | 36 | 36 | 33 | 9 |
| 80 | 82 | 125 | M 8 | 10 | 29 | 17 | 64 | 104 | 24 | 32 | 50 | 50 | 45 | 12 |
Filter combination produces no result.
Specification
Zinc die castingZD
Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR
Pin
Stainless steel AISI 303
RoHS
Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR
Pin
Stainless steel AISI 303
RoHS
Information

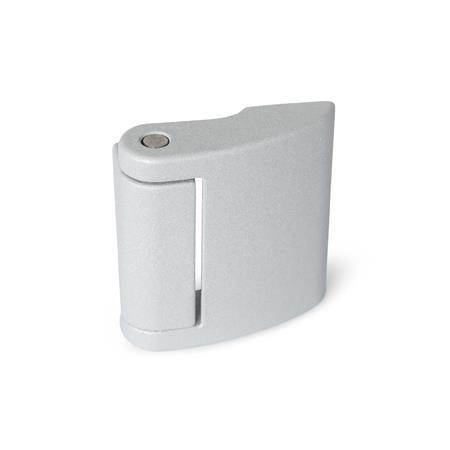

With their attractive design, hinges GN 138 are suitable for use in plant and machinery where a well-designed and stylish appearance is important.
The concealed and tamper-proof mounting from the rear highlights and enhances the special appearance of the hinge.
The hole spacings of the mounting holes m1 and m2 of the short version match typical hinges available on the market to allow use as a replacement hinge.
