with Collar

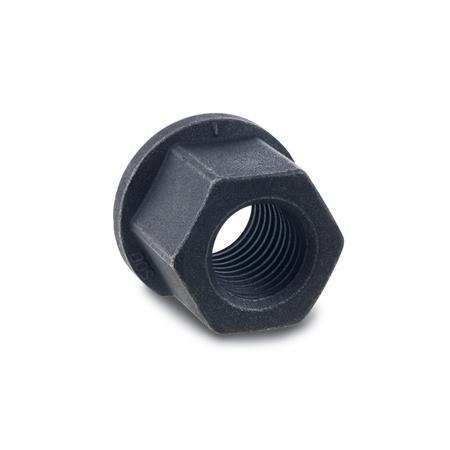

DIN 6331 Hex Nuts, Steel, blackened
| d1 | d2 | a | e min. | m | A/F |
|---|---|---|---|---|---|
| M 6 | 14 | 3 | 11,5 | 9 | 10 |
| M 8 | 18 | 3,5 | 14,4 | 12 | 13 |
| M 10 | 22 | 4 | 17,8 | 15 | 16 |
| M 12 | 25 | 4 | 20 | 18 | 18 |
| M 14 | 28 | 4 | 24,6 | 21 | 22 |
| M 16 | 31 | 5 | 26,8 | 24 | 24 |
| M 20 | 37 | 6 | 33,5 | 30 | 30 |
| M 24 | 45 | 6 | 40 | 36 | 36 |
| M 30 | 58 | 8 | 51,3 | 45 | 46 |
| M 36 | 68 | 10 | 61,3 | 54 | 55 |
Filter combination produces no result.
Specification
On request
Size M10 with A/F 17
Information
Hex nuts DIN 6331 are used on clamping applications which require frequent clamping and unclamping (m = 1,5 x d1).
The collar of the nut eliminates the need for washers.
The official standard sheet specifies the additional sizes M 27, M 42 and M 48. But M14 ist not forseen on the official standard sheet.
