Zinc Die Casting, without Switch
GN 139.2 Hinges
| l1 small hinge wing | broad hinge wing | l2 | l3 | l4 | l5 small hinge wing | broad hinge wing | h1 | h2 | m1 | m2 | m3 small hinge wing | broad hinge wing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 79 | 101 | 30 | 81 | 15 | 30 | 12 | 22,5 | 71 | 17 | 27 | 50 |
Filter combination produces no result.
Specification
Zinc die casting
Powder coated
Silver metallic
Pin
Stainless steel
AISI 303
Stainless Steel Characteristics
Load rating information of metal hinges
Overview to appropriate standards of the assembly sets GN 965
Overview to appropriate standards of the assembly sets GN 968
List of Hinge Types
RoHS
Powder coated
Silver metallic
Pin
Stainless steel
AISI 303
Stainless Steel Characteristics
Load rating information of metal hinges
Overview to appropriate standards of the assembly sets GN 965
Overview to appropriate standards of the assembly sets GN 968
List of Hinge Types
RoHS
Information

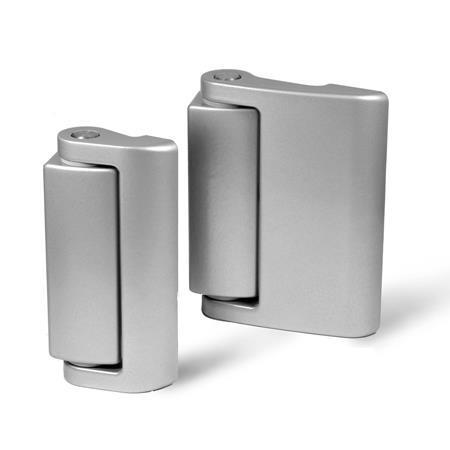

With the exception of the connector plug, hinges without safety switch GN 139.2 do not differ in their external appearance from hinges with safety switch GN 139.1. With the concealed screw connection at the back, the hinge is also tamper-proof.
The compact design combines safety and attractive appearance.
The design with broad hinge halves is intended for mounting to glass or polycarbonate doors.
