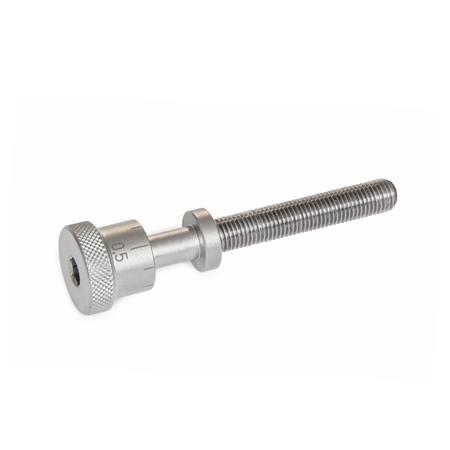

GN 827 Stainless Steel Adjusting Screws
Coding
| S | With standard scale 0...0,5, 10 graduations |
| d1 | l1 | d2 -0,4/-0,6 | d3 | d4 | l2 +0,1 | l3 | l4 | s | ||
|---|---|---|---|---|---|---|---|---|---|---|
| M 6 x 1 | 20 | 35 | 50 | 6 | 10 | 16 | 10,1 | 14 | 2,9 | 5 |
| M 8 x 1 | 30 | 45 | 60 | 8 | 14 | 20 | 12,1 | 16 | 3,9 | 6 |
| M 10 x 1 | 40 | 60 | 80 | 10 | 16 | 24 | 15,1 | 18 | 5,9 | 8 |
Filter combination produces no result.
Specification
Stainless steelNG AISI 303
Matte shot-blasted
Scale
Laser-engraved, black discharged
RoHS
Matte shot-blasted
Scale
Laser-engraved, black discharged
RoHS
Accessory
Bearing Blocks GN 828Stainless Steel Knurled Nuts GN 827.1
Information
Stainless steel adjusting screws GN 827 are used in combination with bearing blocks GN 828 for simple adjustment and positioning tasks.
For processing and assembly equipment on which attachments and mechanisms must be regularly exchanged, particularly simple adjustments can be achieved by combining adjusting screws GN 827, knurled nuts GN 827.1 and bearing blocks GN 828 of the types UA and UB to ensure that settings are retained even between uses.
| How to order |
| ||||||||
GN 827-M8X1-45-NG-S |
