Aluminum

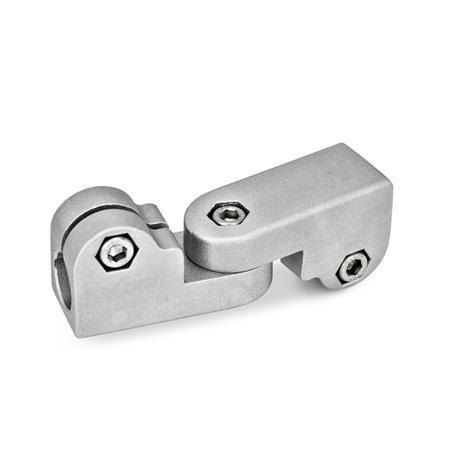

GN 285 Swivel Clamp Connector Joints
Identification no.
| 2 | With 3 stainless steel socket cap screws DIN 912 |
| d1 Bore | d2 Bore | b Swivel width | k1 | k2 | l1 | l2 | m1 | m2 | z1 Screw locations | z2 Screw locations | Accessory Recom. hand lever GN 911 for z1 l3 | for z2 l3 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B 12 | B 12 | B 14 | B 15 | B 16 | B 18 | 25 | 31,5 | 31,5 | 97 | 34,5 | 48,5 | 48,5 | M6-20 | M6-20 | 63 | 45 | 63 |
| B 14 | B 14 | B 15 | B 16 | B 18 | - | 25 | 31,5 | 31,5 | 97 | 34,5 | 48,5 | 48,5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 |
| B 15 | B 15 | B 16 | B 18 | - | - | 25 | 31,5 | 31,5 | 97 | 34,5 | 48,5 | 48,5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 |
| B 16 | B 16 | B 18 | - | - | - | 25 | 31,5 | 31,5 | 97 | 34,5 | 48,5 | 48,5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 |
| B 18 | B 18 | - | - | - | - | 25 | 31,5 | 31,5 | 97 | 34,5 | 48,5 | 48,5 | M6-20 | M6-20 | 45 | 63 | 45 | 63 |
Filter combination produces no result.
Specification
Aluminum
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
RoHS
- Powder coated
Black, RAL 9005, textured finishSW
- Plain, Matte shot-blastedBL
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
RoHS
Accessory
Adjustable Hand Levers GN 911Information
Swivel clamp connector joints GN 285 are an assembly of two swivel clamp connectors GN 275.
The clamping bores are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.
At the screw locations z1, the socket cap screws reduce the bore cross-section for clamping.
For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
| How to order |
| ||||||||
GN 285-B12-B16-2-BL |
RoHS compliant:
-
-
Weight:
-
-
