GN 913.5 Stainless Steel Grub Screws

Product details
Order / Request
CAD data

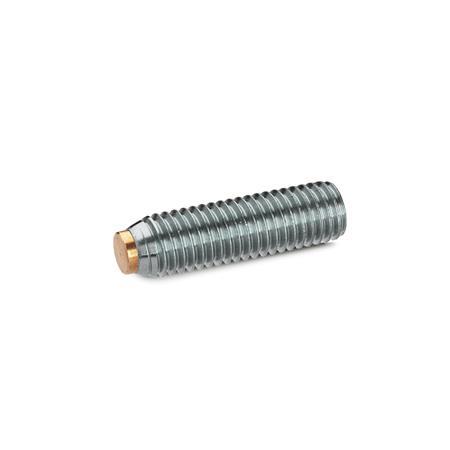

Stainless Steel Grub Screws GN 913.5 thumbnail

Stainless Steel Grub Screws GN 913.5 sketch

Show filter

d₁	l₁ Nominal length										d₂	d₃	l₂	l₃ ±0,3	A/F₁	A/F₂

M 3	3	4	5	6	8	10	-	-	-	-	1,9	1,5	0,5	0,8	1,5	1,5
M 4	4	5	6	-	-	-	-	-	-	-	2,5	2	0,5	1	2	1,5
M 4	8	10	12	16	20	-	-	-	-	-	2,5	2	0,5	1	2	2
M 5	5	6	-	-	-	-	-	-	-	-	3	3	0,5	1	2,5	2
M 5	8	10	12	16	20	25	-	-	-	-	3	3	0,5	1	2,5	2,5
M 6	6	8	10	12	16	20	25	32	40	50	4	3,5	1	1,3	3	3
M 8	8	10	12	16	20	25	32	40	50	63	6	5	1,5	1,6	4	4
M 10	16	20	25	32	40	50	63	80	-	-	8	6,5	2	1,9	5	5
M 12	20	25	32	40	50	63	80	100	-	-	10	8	2	2,1	6	6

Filter combination produces no result.

Specification

Screw
Stainless steel AISI 303

Thrust pivot

BrassMS
Plastic (Polyacetal POM)KU

Stainless Steel Characteristics

Plastic Characteristics

RoHS

Information

Stainless steel grub screws GN 913.5 with pivot in brass or plastic are used in applications, where marks and damage on the workpiece are unacceptable.
