GN 474.1 Parallel Mounting Clamps

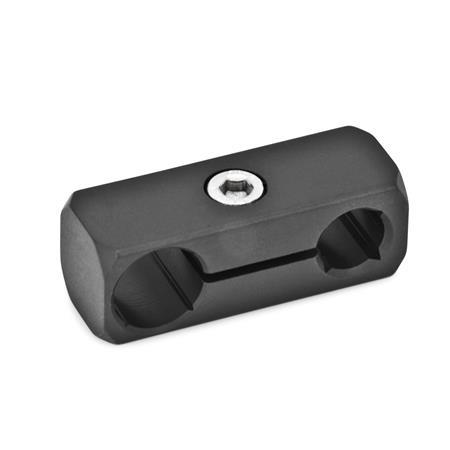

Parallel Mounting Clamps GN 474.1 thumbnail

Parallel Mounting Clamps GN 474.1 sketch

Show filter

d₁ Bore for shaft tol. h11	d₂ Bore for shaft tol. h11	d₃ Clamping thread	k	l₁	l₂	m	s₁ Square	s₂ Square	Clamping kits for d₃

B 8	B 8	M 4	14	38	7	24	-	-	GN 511-M4-14
B 10	B 8	M 5	16	44	8	28	8	-	GN 511-M5-16
B 10	B 10	M 5	16	44	8	28	8	8	GN 511-M5-16
B 12	B 8	M 5	16	45	8	29	10	-	GN 511-M5-16
B 12	B 10	M 5	16	45	8	29	10	10	GN 511-M5-16
B 12	B 12	M 5	16	45	8	29	10	10	GN 511-M5-16
B 15	B 10	M 6	20	55	10	35	12	8	GN 511-M6-20
B 15	B 12	M 6	20	55	10	35	12	10	GN 511-M6-20
B 15	B 15	M 6	20	55	10	35	12	12	GN 511-M6-20
B 16	B 10	M 6	20	55	10	35	-	8	GN 511-M6-20
B 16	B 12	M 6	20	55	10	35	-	10	GN 511-M6-20
B 16	B 15	M 6	20	55	10	35	-	12	GN 511-M6-20
B 16	B 16	M 6	20	55	10	35	-	-	GN 511-M6-20
B 20	B 12	M 6	25	66	12,5	41	16	12	GN 511-M6-25
B 20	B 15	M 6	25	66	12,5	41	16	12	GN 511-M6-25
B 20	B 16	M 6	25	66	12,5	41	16	-	GN 511-M6-25
B 20	B 20	M 6	25	66	12,5	41	16	16	GN 511-M6-25

Filter combination produces no result.

Specification

Aluminum

Matte, groundMT
Anodized blackELS

Socket cap screws DIN 912
Stainless steel AISI 304

ISO Fundamental Tolerances

Stainless Steel Characteristics

RoHS

Accessory

Clamping Kits GN 511

Information

In the standard version, the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kit GN 511 (article code see table of dimensions).
