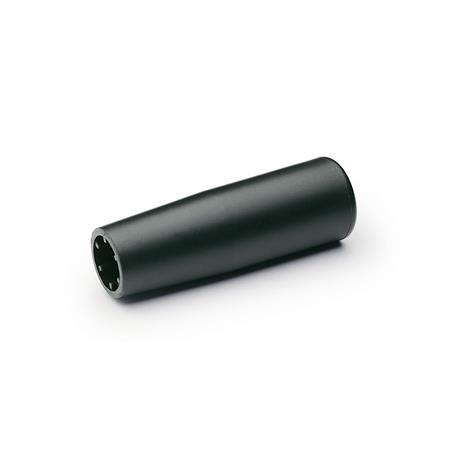

GN 519.1 Cylindrical Knobs
ELESA original design I.580 N
| d1 | d2 Bore | d3 | l1 | l2 min. | |
|---|---|---|---|---|---|
| 18 | B 8 | - | 15 | 40 | 28 |
| 21 | B 10 | - | 17 | 50 | 35 |
| 23 | B 10 | B 12 | 19 | 65 | 45 |
| 26 | B 12 | B 14 | 21 | 80 | 50 |
| 28 | B 15 | B 16 | 22 | 90 | 60 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polypropylene PP)
RoHS
Technopolymer (Polypropylene PP)
- Shock resistant
- Temperature resistant up to 80 °C
- Black, matte finish
RoHS
Information
The cylindrical knobs GN 519.1 do not require a thread at the shaft.
During mounting, easy blows with a soft hammer are sufficient to drive the knob into place, the shaft end should be slightly rounded or chamfered (30°). The knobs sit absolute vibration-tight.
| How to order |
| ||||
GN 519.1-26-B12 |
