for Grub Screws DIN 6332 / for Tommy Screws DIN 6304 / DIN 6306

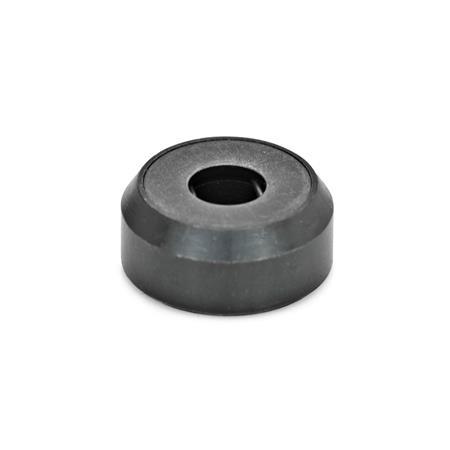

GN 6311.1 Thrust Pads

Type

A	Thrust pad surface plane, without plastic cap
K	Thrust pad surface plane, with plastic cap
P	Thrust pad surface with detent, without plastic cap

Show filter

d₁	b	d₂ +0,2	d₃ min.	max.	e ≈ Type A	Type P	h₁	h₂	s	suitable for grub screw DIN 6332

12	8	5,2	7,5	16	1,5	4,5	6	9	1,5	M 6	-
16	10	6,3	7,5	20	2,3	5,3	8	11	1,5	M 8	-
20	12	9,2	7,5	24	2,6	5,6	10	13	1,5	M 10	M 12
25	16	9,2	7,5	32	2,9	6,9	11	15	1,5	M 10	M 12
32	22	12,5	7,5	44	4,5	9,5	14	19	1,5	M 16	-
40	25	16,5	7,5	50	4,5	10,5	16	22	1,5	M 20	-

Filter combination produces no result.

Specification

Steel
Blackened

Retaining spring
Stainless steel AISI 301

Plastic cap (Polyacetal POM)

Natural color
Temperature resistant up to 100 °C

Plastic Characteristics

RoHS

Information

Thrust pads GN 6311.1 are used in conjunction with grub screws fitted with thrust point (grub screws DIN 6332, tommy screws DIN 6304 and DIN 6306) to transmit clamping force. They align themselves on uneven and non-parallel surfaces and thus prevent the rotating force being transmitted to the workpiece.

The plastic cap (type K) prevents damage to delicate workpieces.

The unique shape of the retaining spring permits easy insertion and removal of grub screws into or from the thrust pad.

Thrust pads GN 6311.1 can be used in conjunction with DIN 6332 grub screws as leveling feet.
