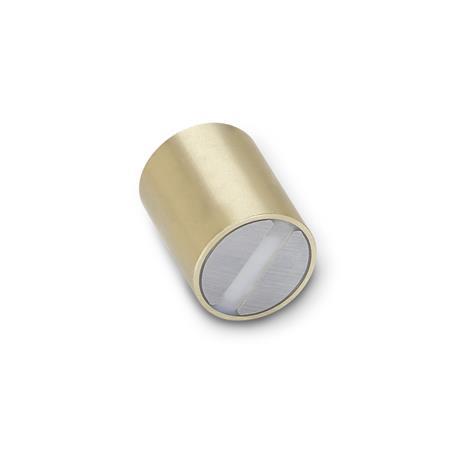

Rod-Shaped, with Internal Thread, with Fitting Tolerance

GN 54.2 Retaining Magnets,

Show filter

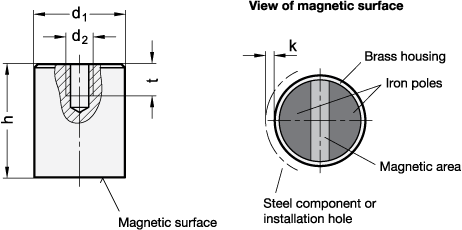

d₁ h6	d₂	h	k^*	t	Nominal magnetic forces in N SC	ND

6	M 3	20 ±0,2	1,5	5	8	10
8	M 3	20 ±0,2	1,5	5	22	25
10	M 4	20 ±0,2	2	7	40	45
13	M 4	20 ±0,2	2,5	7	60	70
16	M 4	25 ±0,2	3	8	125	150
20	M 6	25 ±0,2	4	6	250	280
25	M 6	35 ±0,3	5	8	400	450
32	M 6	40 ±0,3	6	6	600	700

Filter combination produces no result.

Specification

Housing
Brass

Materials of the magnet:

SmCoSC
Samarium, cobalt
Temperature resistant up to 200 °C
NdFeBND
Neodymium, iron, boron
Temperature resistant up to 80 °C

Identification of ND:
Magnetic area colored blue

ISO Fundamental Tolerances

RoHS

Accessory

Holding Disks GN 70

Adhesive Disks GN 70.1

Rubber Caps GN 70.2

On request

Housing in stainless steel

Pols in stainless steel

Higher magnetic forces

Temperature resistance up to 280 °C

Information

Retaining magnets GN 54.2 are combined with a brass housing, the iron poles and the plastic insulation into a system that shields and considerably strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

This special design is also known by the name “sandwich magnet” or “pole shoe magnet”.

^* Mounting these retaining magnets directly in steel components will create a magnetic shortcircuit which reduces the retaining power by as much as 15%. To avoid this, the distance k should be maintained between the brass housing and steel part or installation hole.
