GN 355 Stainless Steel Leveling Elements

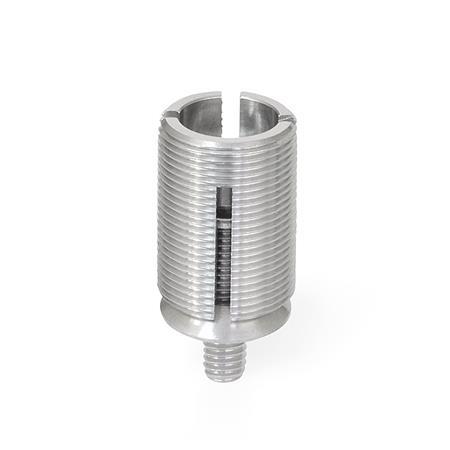

Stainless Steel Leveling Elements GN 355 thumbnail

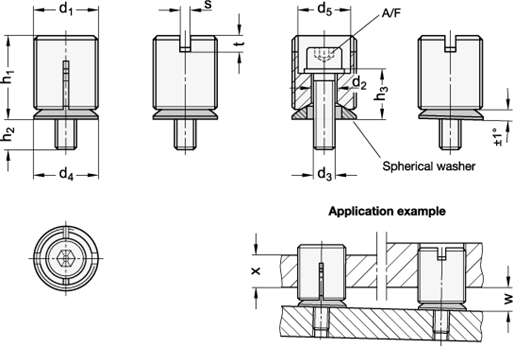

Stainless Steel Leveling Elements GN 355 sketch

Show filter

d₁	d₂	d₃	d₄	d₅	h₁	h₂	h₃	s	A/F	t	w max.	x min.	Static load F in kN	Code no. Assembly tool

M 12 x 1	4,5	M 4	12	9,1	19,1	10,9	9,1	2	3	3	8	8	4,4	GN 355.1-12
M 18 x 1	7	M 6	17	12,6	26,8	10,1	14,9	2	5	3	13	12	10	GN 355.1-18
M 24 x 1,5	9	M 8	24	19,6	31,1	11,3	18,7	4	8	6	16	16	27	GN 355.1-24
M 30 x 1,5	13	M 12	30	25,6	32,6	20,4	19,6	4	10	6	17	20	40	GN 355.1-30
M 36 x 1,5	18	M 16	36	31,6	45,7	15,8	24,2	4	14	6	19	24	70	GN 355.1-36

Filter combination produces no result.

Specification

Leveling element
Stainless steelNI AISI 303

Socket cap screw DIN 912
Stainless steel A2-70

Washer DIN 433
Stainless steel AISI 304

Spherical washer
Stainless steel AISI 303

Application video GN 355 / GN 355.2

Operating instruction GN 355

Stainless Steel Characteristics

RoHS

Accessory

Asembly tools GN 355.1
(Code no. see table)

Information

Leveling elements GN 355 are used for leveling and adjustment in machines and equipment.

They consist of a leveling screw, a cylinder screw with disk and a spherical washer. After making the adjustment using the assembly tools GN 355.1 available as accessory, the screw is tightened firmly causing the leveling screw and the spherical washer DIN 6319 underneath to spread and is so secured against twisting in the taphole.

The values for w and x given in the table and for the static load capacity are to be seen as reference values which may differ depending on the prevailing situation. In general, they do not constitute a warranty of condition. The user must determine whether the product is suitable for the intended purpose.
