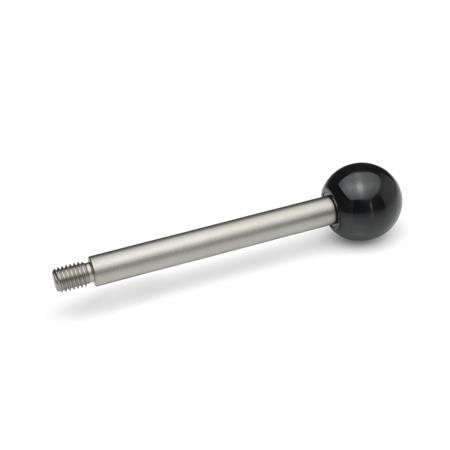

GN 310 Stainless Steel Gear Lever Handles
Type
| A | Ball knob DIN 319 |
| D | Domed gear knobs GN 719 |
| E | Cylindrical knob GN 519 |
| d1 | l1 | d2 | d3 | d4 | d5 | l2 | l3 | l4 | l5 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 63 | 80 | 100 | M 6 | 20 | 20 | 18 | 9 | 18 | 32 | 40 |
| 10 | 80 | 100 | 125 | M 8 | 25 | 26 | 21 | 11 | 22,5 | 42 | 50 |
| 12 | 100 | 125 | 160 | M 10 | 32 | 33 | 23 | 14 | 29 | 55 | 65 |
| 14 | 125 | 160 | 200 | M 12 | 35 | 33 | 26 | 16 | 32,5 | 55 | 80 |
| 16 | 160 | 200 | 250 | M 14 | 40 | 38 | 28 | 18 | 37 | 69 | 90 |
Filter combination produces no result.
Specification
Shafts
Stainless steelNI
Knobs
Plastic
Duroplast (Phenolic PF)
RoHS
Stainless steelNI
- AISI 303
- Matte shot-blasted
Knobs
Plastic
Duroplast (Phenolic PF)
- Black, shiny finish
- Screwed-on
RoHS
Information
Stainless steel gear lever handles GN 310 are highly universal options for movement and operation. Actuation of hydraulic valves and control levers eccentric cams are example uses of these standard parts.
