Aluminum, for Two-Way Axis System

GN 132.2 Two-Way Linear Actuator Connectors

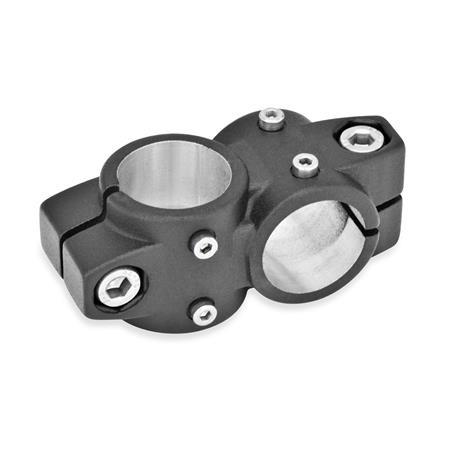

Two Way Linear Actuator Connectors GN 132.2 thumbnail

Two Way Linear Actuator Connectors GN 132.2 sketch

Identification no.

2	With 2 stainless steel socket cap screws DIN 912

Show filter

d₁ - d₂ Two-axis system without sleeve bearing	with sleeve bearing	k Clamping length	d₃ Mounting screws on the drive key	l₁	l₂	m	z Screw locations	Accessory Recom. hand lever GN 911 for z l₃

B30 - B30	G30 - G30	40	M 4	97	40	33	M8-25	63 \| 78
B30 - B30	G30 - G30	56	M 4	125	56	45	M10-35	-
B40 - B40	G40 - G40	56	M 5	125	56	45	M10-35	78 \| 92
B40 - B40	G40 - G40	65	M 5	143	65	53	M10-50	-
B50 - B50	G50 - G50	65	M 6	143	65	53	M10-50	78 \| 92
B60 - B60	G60 - G60	80	M 8	169	80	65	M10-50	78 \| 92

Filter combination produces no result.

Specification

Aluminum

Powder coated
Black, RAL 9005, textured finishS

Sleeve bearing
Plastic (PTFE)

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

Stainless Steel Characteristics

Plastic Characteristics

RoHS

Accessory

Adjustable Hand Levers GN 911

Information

Two-way linear actuator connectors GN 132.2 are based on two-way connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation “G” are equipped with sleeve bearings.

With the screw locations z, the play of the guide bores d₁ / d₂ can be adjusted or the linear actuator connectors can be clamped after adjustment.

For quick clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessory.
