for Quick Release Couplings GN 1050 and Flanges GN 1050.2
GN 1050.1 Studs
Type
| A | With threaded stud |
| I | With internal thread |
| Nominal size Quick release coupling GN 1050 | d2 | d1 | d3 ±0,03 | l1 | l2 | A/F | t Min. | z ±0,1 Axial offset |
|---|---|---|---|---|---|---|---|---|
| 2 | M 10 | 53 | 18,25 | 37,1 | 15 | 6 | 18 | 0,4 |
| 2 | M 12 | 53 | 18,25 | 37,1 | 18 | 6 | 18 | 0,4 |
Specification
- Tempered
- Zinc plated, blue passivated
https://www.youtube.com/watch?v=4AEVVzBMc-0
Quick Release Couplings - Highlights
Quick Release Couplings - Application Examples
RoHS
Information

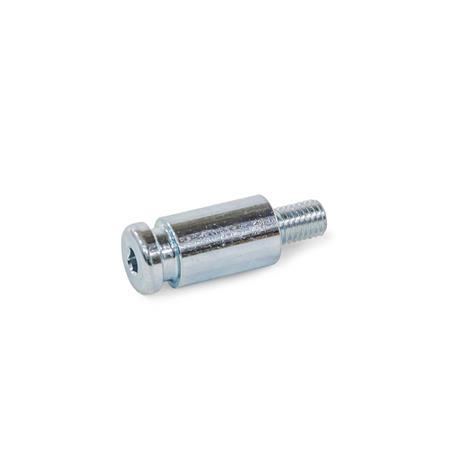

Studs GN 1050.1 position and attach components without tools using quick release couplings GN 1050 for a tight and repeatable fit. The dimensions and material properties of the studs have been precisely adapted to the couplings to ensure proper functionality.
The studs can be purchased individually so that multiple studs can be paired with a coupling in alternation, such as to efficiently position fixtures in different locations depending on the workpiece. The studs are fastened with threaded stud or internal thread, depending on the type.
To achieve the indicated load capacities, threaded holes on the application or inserted nuts and screws must meet at least property class 8.
Flanges GN 1050.2 are available as an accessory for mounting the studs and provide additional attachment options.
| How to order |
| ||||||||
GN 1050.1-2-M12-I-ST |
