Retainers for Ball Transfer Units GN 509 / GN 509.1
GN 509.3 Spring Rings
Type
| A | Clamp spring washer |
| B | Retaining ring |
| Type | d1 | d2 | d3 | d4 min. | s1 | s2 | for ball transfer units GN 509 / GN 509.1 Size |
|---|---|---|---|---|---|---|---|
| A | 31 | - | 25 -0,2 | - | 2 ... 3 | - | 15 |
| A | 44 | - | 37,3 -0,3 | - | 2 ... 4 | - | 22 |
| A | 55 | - | 46,7 -0,3 | - | 2 ... 4 | - | 30 |
Filter combination produces no result.
| Type | d1 | d2 | d3 | d4 min. | s1 | s2 | for ball transfer units GN 509 / GN 509.1 Size |
|---|---|---|---|---|---|---|---|
| B | - | 36 | - | 22,2 | - | 0 ... ∞ | 12 |
| B | - | 38 | - | 24,2 | - | 0 ... ∞ | 15 |
Filter combination produces no result.
Specification
Type A
Spring steel
Stainless steel
Type B
Spring steel
Zinc plated
RoHS
Spring steel
Stainless steel
Type B
Spring steel
Zinc plated
RoHS
Information

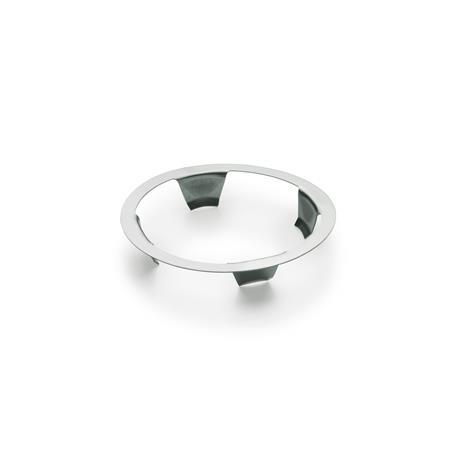

Clamp spring washers GN 509.3, type A allow ball transfers units to be mounted and removed from the installation side.
Retaining rings GN 509.3, type B are mounted from the back. Ball transfers units mounted this way can no longer be dismantled. No restrictions exist with respect to sheet metal thickness.
| How to order |
| ||||
GN 509.3-31-A |
