Stainless Steel

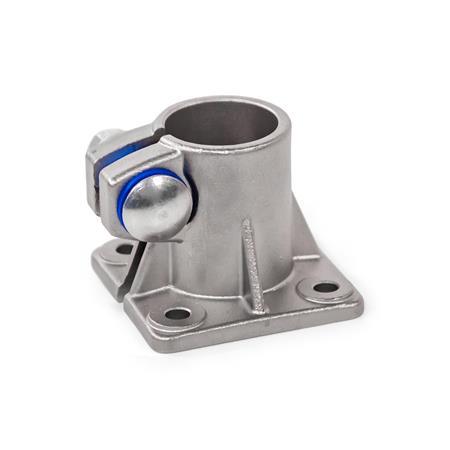

GN 163.5 Base Plate Connector Clamps
Type
| A | Without seals |
| B | With seals |
Identification no.
| 4 | With stainless steel cap nut DIN 917 |
| d1 Bore | b | d2 | d3 | k Clamping length | l1 | m | t | x1 | x2 | y1 | y2 | z Screw location | Accessory recom. hand lever GN 911.3 for z l2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B 30 | 22 | 6,5 | 37 | 50 | 36 | 35 | 6,5 | 60 | 42 | 60 | 42 | M 8 | 63 | 78 |
| B 50 | 30 | 10,7 | 60 | 85 | 48,5 | 60 | 9 | 105 | 74 | 105 | 74 | M 10 | 78 | 92 |
Filter combination produces no result.
Specification
Stainless steel AISI CF-8
Matte shot-blasted
Carriage bolt DIN 603
Stainless steel
Cap nuts DIN 917 / washers
Stainless steel
Seals
RoHS
Matte shot-blasted
Carriage bolt DIN 603
Stainless steel
Cap nuts DIN 917 / washers
Stainless steel
Seals
- Sealing disks
Plastic (Polyacetal POM) - Spacer ring
Silicon, 40 ... 60 Shore A
RoHS
Accessory
Adjustable Hand Levers GN 911.3Information
The clamping bores of base plate connector clamps GN 163.5 are mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.
At the screw location z, the carriage bolt and the cap nut reduce the bore cross-section for clamping. Type B is equipped with seals at the screw location.
For clamping without tools, the cap nut can be replaced by an adjustable hand lever GN 911.3 listed in the table as accessory.
| How to order |
| ||||||
GN 163.5-B30-B-4 |
