Aluminum

GN 131.1 Two-Way Linear Actuator Connectors

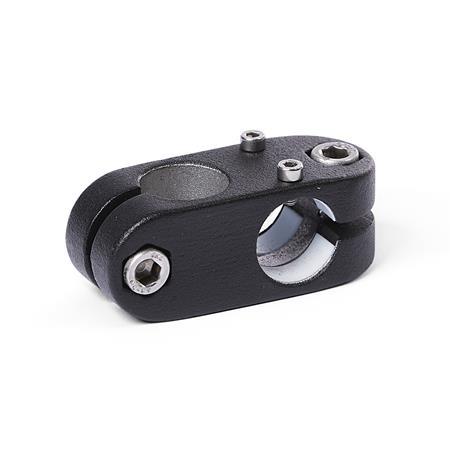

Two Way Linear Actuator Connectors GN 131.1 thumbnail

Two Way Linear Actuator Connectors GN 131.1 sketch

Identification no.

2	With 2 stainless steel socket cap screws DIN 912

Show filter

d₁ - d₂ without sleeve bearing	with sleeve bearing	d₃ Mounting screws on the drive key	k Clamping length	l₁	m	z Screw locations	Accessory Recom. hand lever GN 911 for z l₂

B 18 - B18	G 18 - B18	M 3	25	64	20	M6-20	45 \| 63

Filter combination produces no result.

Specification

Aluminum
Powder coated
Black, RAL 9005, textured finishSW

Sleeve bearing
Plastic (PTFE)

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

Plastic Characteristics

Stainless Steel Characteristics

RoHS

Accessory

Adjustable Hand Levers GN 911

Information

Two-way linear actuator connectors GN 131.1 are based on two-way connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation “G” are equipped with sleeve bearings.

The play of the guide bores d₁ / d₂ can be adjusted via the screw locations z, or the linear actuator connectors can be clamped after adjustment.

For quick clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
