Steel Precision Casting, for Profile Systems

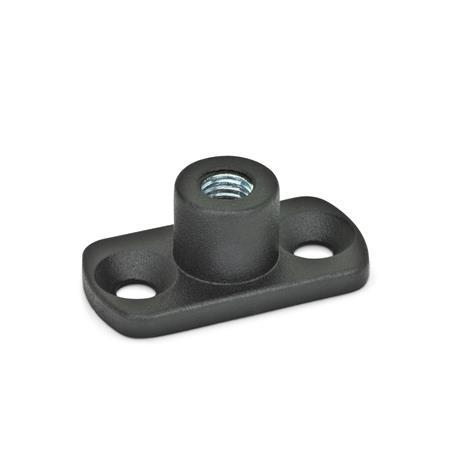

GN 3490 Threaded Flanges

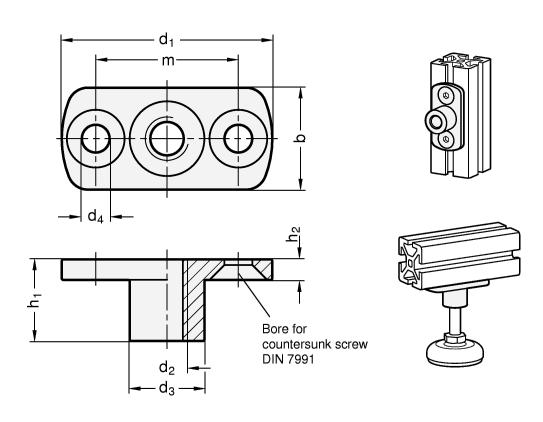

| d1 | d2 | h1 | b | d3 | d4 For screw | h2 | m | |
|---|---|---|---|---|---|---|---|---|
| 45 | M 6 | M 8 | 16 | 25 | 15 | M 6 | 6 | 30 |
| 60 | M 10 | M 12 | 24 | 30 | 21,5 | M 8 | 6 | 40 |
Filter combination produces no result.
Specification
Steel precision casting
RoHS
- Zinc plated, blue passivatedZB
- Zinc plated and powder coated
Black, RAL 9005, textured finishSW
RoHS
Information
Threaded flanges GN 3490 are used in connection with T-slot profile systems and allow elements to be assembled on or underneath the profiles, e.g. leveling feet.
Depending on the threaded flange, thread size and thread depth dimensions that are available can exceed the dimensions of the profile groove.
see also...
| How to order |
| ||||||||
GN 3490-45-M8-16-SW |
