for Linear Actuators Ø 18

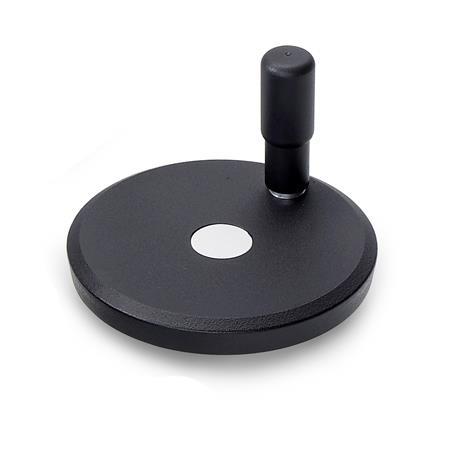

GN 923.18 Disk Handwheel Ø 80
Bore code
| K | With keyway |
Type
| R | With revolving handle |
| d1 | d2 | d3 | d4 | b | h | l1 | l2 | l3 ≈ | Ø Handle GN 798.2 |
|---|---|---|---|---|---|---|---|---|---|
| 80 | 6 | 26 | 17 | 13 | 7 | 16 | 26 | 43,5 | 16 |
Filter combination produces no result.
Specification
Aluminum die casting
Hub machined
Rim turned
Powder coated
Black, RAL 9005, textured finishSW
Concentric runout and axial runout deviation of the rim < 0,4
Revolving handles GN 798.2
Plastic, Technoplymer
Black, matte finish
RoHS
Hub machined
Rim turned
Powder coated
Black, RAL 9005, textured finishSW
Concentric runout and axial runout deviation of the rim < 0,4
Revolving handles GN 798.2
Plastic, Technoplymer
Black, matte finish
RoHS
